1-1969597-8 | TE Connectivity

Socket housing, 18 pole, pitch 4.2 mm, straight, natural, 1-1969597-8

Order No.: 71P1021
EAN: 4099891717841
MPN:
1-1969597-8
TE Connectivity

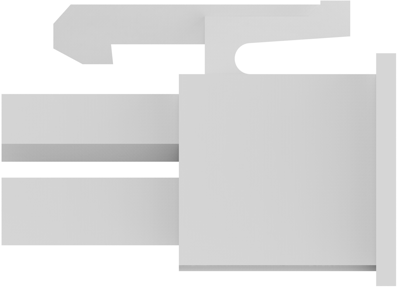

1-1969597-8 TE Connectivity PCB Connection Systems Image 1

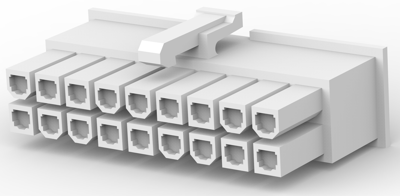

1-1969597-8 TE Connectivity PCB Connection Systems Image 2

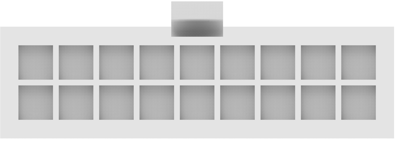

1-1969597-8 TE Connectivity PCB Connection Systems Image 3

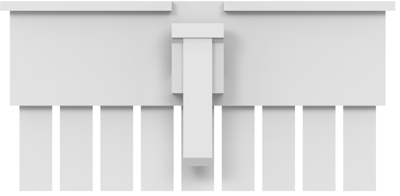

1-1969597-8 TE Connectivity PCB Connection Systems Image 4

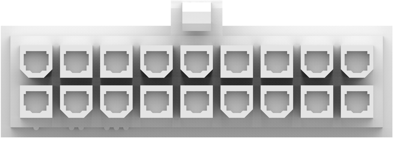

1-1969597-8 TE Connectivity PCB Connection Systems Image 5
Image may differ
Print
Key Specification:
Version socket housing
Contact type socket
Pin number 18 pole
Grid 4.2 mm
Connection crimp connection

Ordering Information:

not to be sold to private customers
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.3808 € *
Available in 5 Days: 2,480 pcs. - if ordered today
Total Price:
209.44 € *
*incl. VAT plus shipping costs
Subject to prior sale
550 pcs.
0.3808 €
Description
Technical specifications
Download
Logistics
Compliance

Rectangular connector, 1-1969597-8, TE Connectivity

The 1-1969597-8 has been expanded with new models accommodating Terminal Position Assurance (TPA) device to help prevent contact back-out. Snapping the TPA device into place helps to assure that contacts are fully seated in the housing and provides secondary protection against a contact backing out of it's cavity when subjected to vibration, shock or pulling force.

Applications

  • Household appliances
  • Desktop computers
  • Indoor/outdoor lighting
  • Security systems
  • HVAC control systems
  • Storage and networking systems
Technical specifications
Grid 4.2 mm
Contact type socket
Connection crimp connection
Rated voltage 600 V
Orientation straight
Number of rows 2
Type of locking Yes
Pin number 18 pole
Colour natural
Version socket housing
Articles of same specification 0
Logistics
Country of origin TW
Customs tariff number 85389099
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
