1-1969591-5 | TE Connectivity

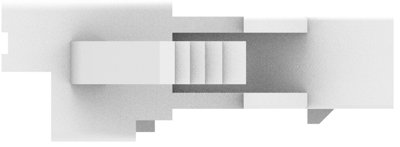

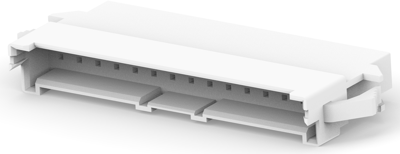

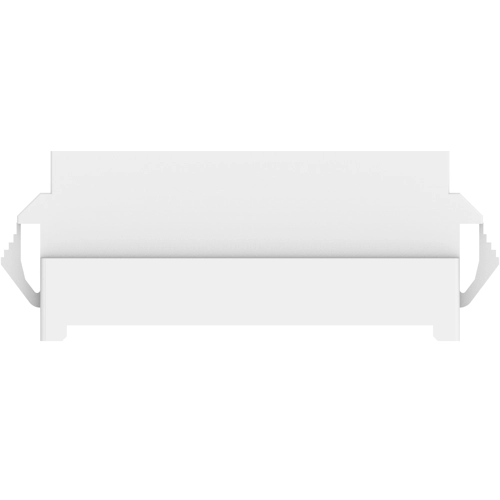

Socket housing, 15 pole, pitch 2.5 mm, straight, natural, 1-1969591-5
Unit Price (€ / pc.)
0.3451 € *
Available: 0 pcs.
Available in 5 Days: 11,928 pcs.
Leadtime: 42 Weeks **
Total Price:
0.35 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3451 €
10 pcs.
0.2975 €
50 pcs.
0.2654 €
100 pcs.
0.2261 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power connector, 1-1969591-5, TE Connectivity
The 1-1969591-5 is a economy power connector that provides a comprehensive connectivity solution with vertical and Right angle headers, optional TPA retainers, wire-to-wire and wire-toboard options and a range of resin materials that include types meeting. This product has asymmetrical terminals that can only be loaded into housing in one way.
Features
- Housing locking latch
- Polarization tabs
- Standard or low insertion force (LIF) terminals
- Anti-fretting contact lubricant
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 1 | |
| Version | Buchsengehäuse | |
| Additional parts | unbestückt | |
| Colour | natur | |
| Contact type | Stift | |
| Rated voltage | 250 V | |
| Rated current | 7.5 A | |
| Orientation | gerade | |
| Pin number | 15-polig | |
| Grid | 2.5 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
