1-1969591-1 | TE Connectivity

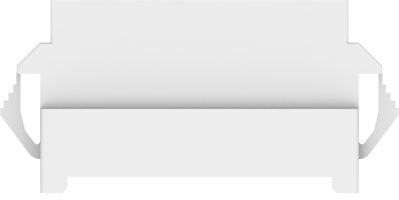

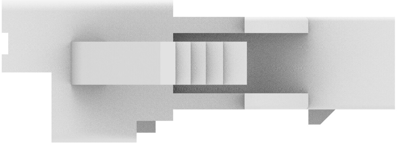

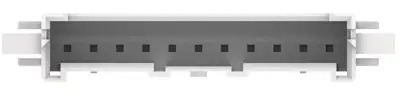

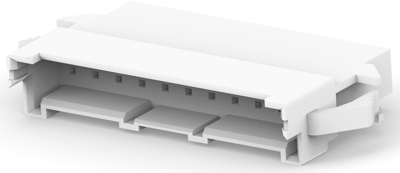

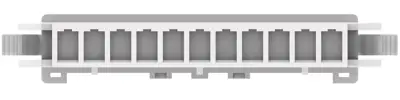

Socket housing, 11 pole, pitch 2.5 mm, straight, natural, 1-1969591-1
Unit Price (€ / pc.)
0.3451 € *
Available in 5 Days: 8,241 pcs. - if ordered today
Total Price:
0.69 € *
Price list
Quantity
Price per unit*
2 pcs.
0.3451 €
50 pcs.
0.2975 €
100 pcs.
0.2654 €
500 pcs.
0.2249 €
*incl. VAT plus shipping costs
Subject to prior sale
Power connector, 1-1969591-1, TE Connectivity
The 1-1969591-1 is a economy power connector that provides a comprehensive connectivity solution with vertical and Right angle headers, optional TPA retainers, wire-to-wire and wire-toboard options and a range of resin materials that include types meeting. This product has asymmetrical terminals that can only be loaded into housing in one way.
Features
- Housing locking latch
- Polarization tabs
- Standard or low insertion force (LIF) terminals
- Anti-fretting contact lubricant
Technical specifications
| Colour | natural | |
| Type of locking | Yes | |
| Rated current | 7.5 A | |
| Grid | 2.5 mm | |
| Pin number | 11 pole | |
| Version | socket housing | |
| Additional parts | unequipped | |
| Orientation | straight | |
| Connection | crimp connection | |
| Contact type | pin | |
| Rated voltage | 250 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85389099 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
