1-1969591-0 | TE Connectivity

Socket housing, 10 pole, pitch 2.5 mm, straight, natural, 1-1969591-0

Order No.: 71P1013
MPN:
1-1969591-0
Series: Economy Power

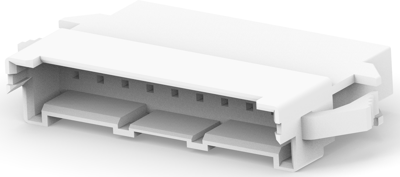

1-1969591-0 TE Connectivity PCB Connection Systems Image 1

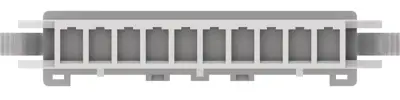

1-1969591-0 TE Connectivity PCB Connection Systems Image 2

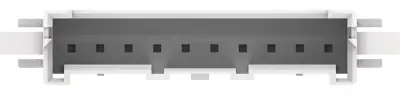

1-1969591-0 TE Connectivity PCB Connection Systems Image 3

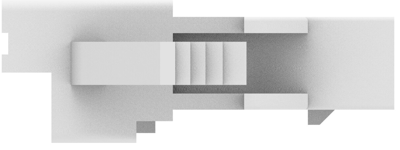

1-1969591-0 TE Connectivity PCB Connection Systems Image 4

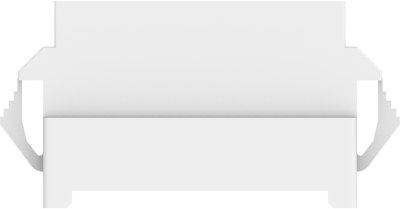

1-1969591-0 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2570 € *
Available in 5 Days: 4,000 pcs. - if ordered today
Total Price:
257.04 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
0.2570 €

Power connector, 1-1969591-0, TE Connectivity

The 1-1969591-0 is a economy power connector that provides a comprehensive connectivity solution with vertical and Right angle headers, optional TPA retainers, wire-to-wire and wire-toboard options and a range of resin materials that include types meeting. This product has asymmetrical terminals that can only be loaded into housing in one way.

Features

  • Housing locking latch
  • Polarization tabs
  • Standard or low insertion force (LIF) terminals
  • Anti-fretting contact lubricant
Technical specifications
Filter Property Value
Rated current 7.5 A
Additional parts unequipped
Version socket housing
Orientation straight
Grid 2.5 mm
Type of locking Yes
Number of rows 1
Contact type pin
Colour natural
Pin number 10 pole
Connection crimp connection
Rated voltage 250 V
Logistics
Property Value
Country of origin CN
Customs tariff number 85389099
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
