1-1969590-2 | TE Connectivity

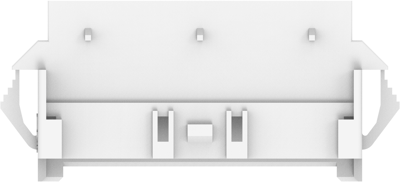

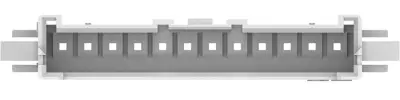

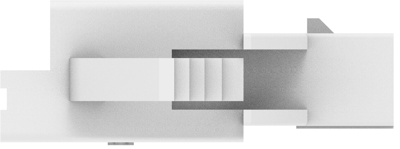

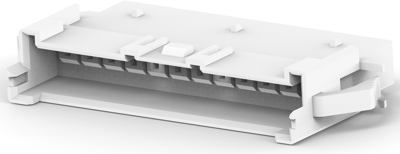

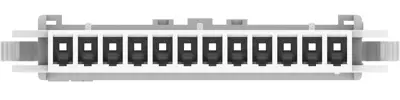

Socket housing, 12 pole, pitch 2.5 mm, straight, white, 1-1969590-2
Unit Price (€ / pc.)
0.1987 € *
Available in 5 Days: 9,504 pcs. - if ordered today
Total Price:
19.87 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1987 €
250 pcs.
0.1833 €
500 pcs.
0.1702 €
1000 pcs.
0.1535 €
*incl. VAT plus shipping costs
Subject to prior sale
Power connector, 1-1969590-2, TE Connectivity
The 1-1969590-2 is a economy power connector that provides a comprehensive connectivity solution with vertical and Right angle headers, optional TPA retainers, wire-to-wire and wire-toboard options and a range of resin materials that include types meeting. This product has asymmetrical terminals that can only be loaded into housing in one way.
Features
- Housing locking latch
- Polarization tabs
- Standard or low insertion force (LIF) terminals
- Anti-fretting contact lubricant
Technical specifications
Filter | Property | Value |
---|---|---|
Grid | 2.5 mm | |
Contact type | pin | |
Version | socket housing | |
Rated current | 7.5 A | |
Rated voltage | 250 V | |
Orientation | straight | |
Type of locking | Yes | |
Additional parts | unequipped | |
Number of rows | 1 | |
Colour | white | |
Pin number | 12 pole | |
Connection | crimp connection |
Download
Logistics
Property | Value |
---|---|
Country of origin | CN |
Customs tariff number | 85389099 |
Compliance
Property | Value |
---|---|
SVHC free | Yes |
Date of RoHS guidelines | 3/31/15 |
RoHS conform | Yes |
