1-1969588-0 | TE Connectivity

Socket housing, 10 pole, pitch 2.5 mm, straight, natural, 1-1969588-0

Order No.: 34P7446
EAN: 4099889916034
MPN:
1-1969588-0

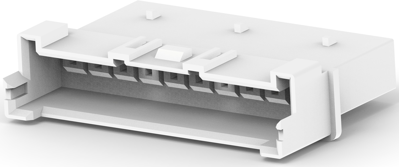

1-1969588-0 TE Connectivity PCB Connection Systems Image 1

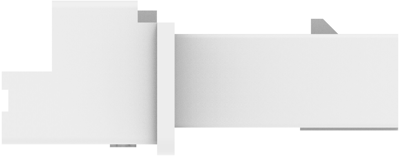

1-1969588-0 TE Connectivity PCB Connection Systems Image 2

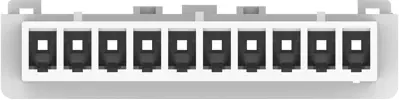

1-1969588-0 TE Connectivity PCB Connection Systems Image 3

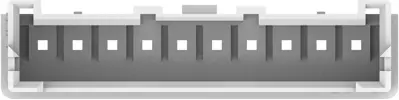

1-1969588-0 TE Connectivity PCB Connection Systems Image 4

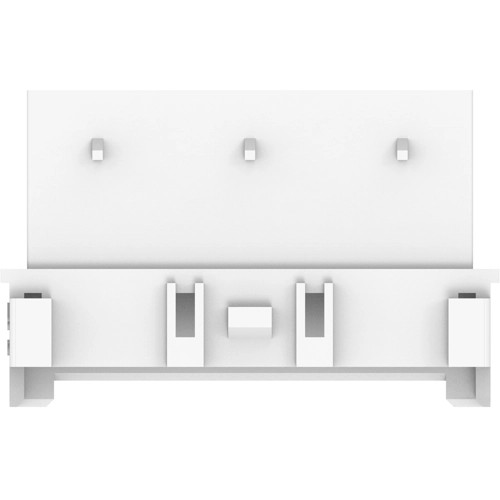

1-1969588-0 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2582 € *
Standard delivery time from the manufacturer is: 41 Weeks
Total Price:
0.52 € *
Price list
Quantity
Price per unit*
2 pcs.
0.2582 €
10 pcs.
0.2344 €
100 pcs.
0.2106 €
500 pcs.
0.1904 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-1969588-0, TE Connectivity

Wire-to-Wire, Wire & Cable, 10 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Male
  • Contact Base Material: Brass
  • Housing Material: Nylon - GF
  • Housing Color: natural
  • Number of positions: 10
  • Operating Temperature Range: -25 – 105 °C [-13 – 221 °F]
  • Rated current: 7.5 A
  • Centerline (Pitch): 2.5 mm
  • PCB Mount Retention: Without
  • Sealable: No
Technical specifications
Colour natural
Breakable No
Type of locking Yes
Rated current 7.5 A
Grid 2.5 mm
Pin number 10 pole
Version socket housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type pin
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin GB
Customs tariff number 85389011
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
