1-1969540-6 | TE Connectivity

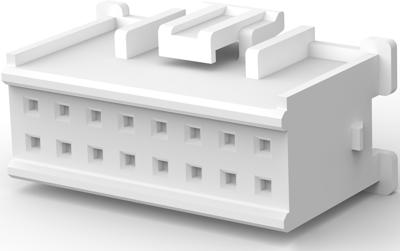

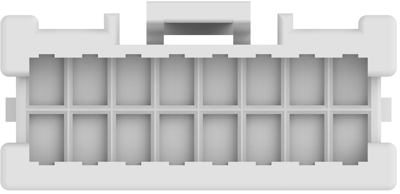

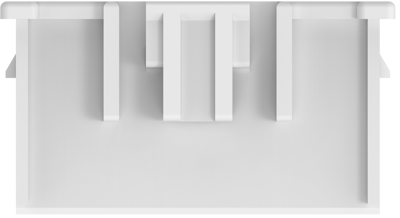

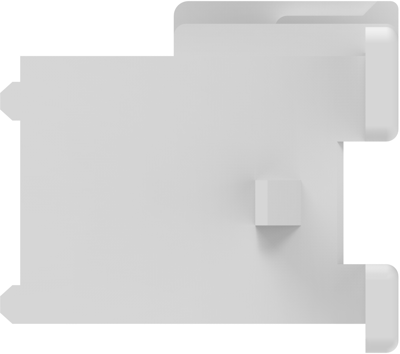

Socket housing, 16 pole, pitch 2.5 mm, straight, white, 1-1969540-6
Unit Price (€ / pc.)
0.3070 € *
Available in 5 Days: 13,167 pcs. - if ordered today
Total Price:
0.31 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3070 €
10 pcs.
0.2844 €
25 pcs.
0.2654 €
50 pcs.
0.2416 €
*incl. VAT plus shipping costs
Subject to prior sale
Wire-to-Board Connector Assemblies and Housings, 1-1969540-6, TE Connectivity
Connector Product Type: Housing, Connector & Housing Type: Plug, Connector System: Wire-to-Wire, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Number of Positions: 16, Number of Rows: 2, Operating Voltage: 250 VAC, Contact Type: Socket, Contact Current Rating (Max): 7.5 A, Termination Method to Wire & Cable: Crimp, Mating Retention Type: Latch, Mating Retention: With, Connector Mounting Type: Cable Mount (Free-Hanging), Housing Material: Nylon - GF, Centerline (Pitch): 2.5 mm, Housing Color: White, Wire Size: .13 – .33 mm², Row-to-Row Spacing: 2.5 mm, Operating Temperature Range: -55 – 105 °C, Circuit Application: Power & Signal, UL Flammability Rating: UL 94V-0, Packaging Method: Bag
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | crimp connection | |
| Colour | white | |
| Additional parts | unequipped | |
| Pin number | 16 pole | |
| Contact type | socket | |
| Orientation | straight | |
| Type of locking | Yes | |
| Breakable | No | |
| Rated voltage | 250 V | |
| Version | socket housing | |
| Rated current | 7.5 A | |
| Number of rows | 2 | |
| Grid | 2.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
