1-1969442-8 | TE Connectivity

Socket housing, 18 pole, pitch 2.5 mm, straight, natural, 1-1969442-8

Order No.: 34P7411
EAN: 4099889915877
MPN:
1-1969442-8

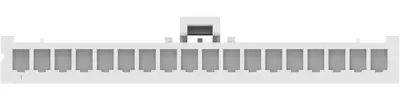

1-1969442-8 TE Connectivity PCB Connection Systems Image 1

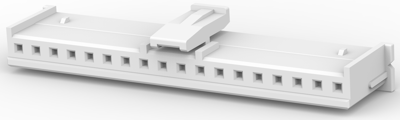

1-1969442-8 TE Connectivity PCB Connection Systems Image 2

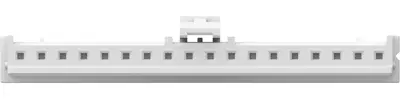

1-1969442-8 TE Connectivity PCB Connection Systems Image 3

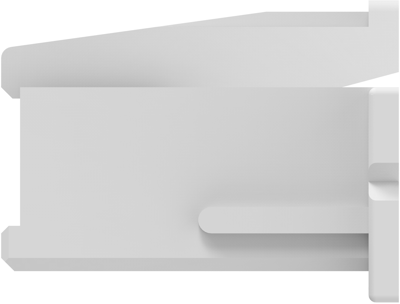

1-1969442-8 TE Connectivity PCB Connection Systems Image 4
1-1969442-8 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.4760 € *
Available in 5 Days: 2,295 pcs. - if ordered today
Total Price:
0.48 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4760 €
10 pcs.
0.4165 €
50 pcs.
0.3689 €
100 pcs.
0.3213 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-1969442-8, TE Connectivity

Wire-to-Board, Wire & Cable, 18 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Contact Base Material: Copper Alloy
  • Housing Material: Nylon - GF
  • Housing Color: natural
  • Number of positions: 18
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 4.5 A
  • Centerline (Pitch): 2.5 mm
  • PCB Mount Retention: Without
  • Sealable: No
Technical specifications
Colour natural
Breakable No
Type of locking Yes
Rated current 4.5 A
Grid 2.5 mm
Pin number 18 pole
Version socket housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type socket
Rated voltage 150 V
Number of rows 1
Logistics
Country of origin TH
Customs tariff number 85389011
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
