1-1939638-5 | TE Connectivity

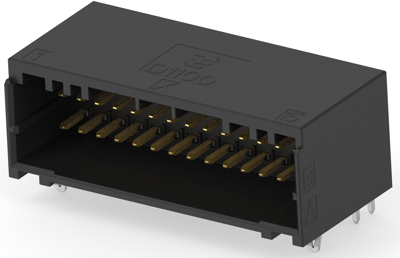

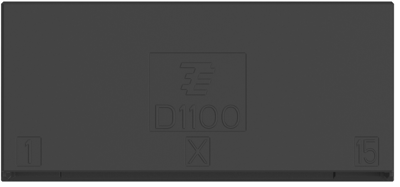

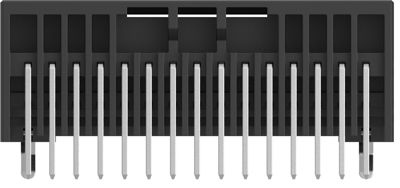

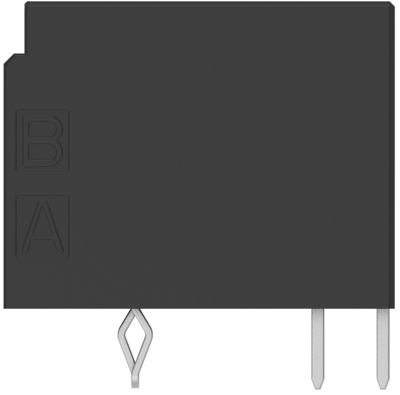

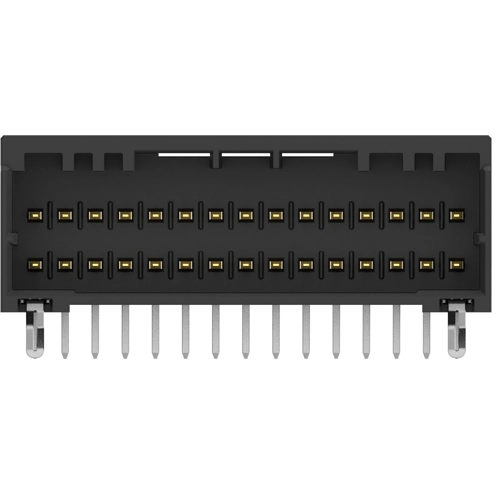

Pin header, 30 pole, pitch 2 mm, angled, black, 1-1939638-5
Unit Price (€ / pc.)
14.6251 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
14.63 € *
Price list
Quantity
Price per unit*
1 pcs.
14.6251 €
10 pcs.
13.5779 €
25 pcs.
12.6735 €
50 pcs.
11.5192 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin header, 1-1939638-5, TE Connectivity
PCB Mount header, Horizontal, Wire-to-Board, 30 Position, 2 mm Centerline, Fully shrouded, Gold, Through Hole-Solder.
Applications
- Industrial Control
- Production Equipment
- Servo Drives
- Power Distribution
- Industrial Process Controls
- Numeric Controllers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 3 A | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Version | pin header | |
| Orientation | angled | |
| Grid | 2 mm | |
| Type of locking | Yes | |
| Number of rows | 2 | |
| Contact type | pin | |
| Colour | black | |
| Pin number | 30 pole | |
| Connection | solder connection | |
| Rated voltage | 125 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
