1-1903131-6 | TE Connectivity

Plug housing, 12 pole, pitch 2.5 mm, straight, black, 1-1903131-6

Order No.: 38P6831
EAN: 4099889973419
MPN:
1-1903131-6
Series: DYNAMIC

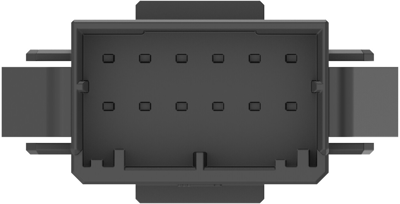

1-1903131-6 TE Connectivity PCB Connection Systems Image 1

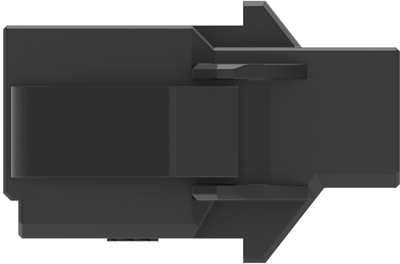

1-1903131-6 TE Connectivity PCB Connection Systems Image 2

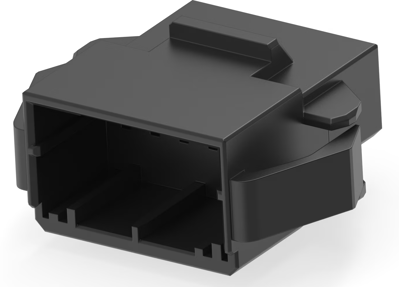

1-1903131-6 TE Connectivity PCB Connection Systems Image 3

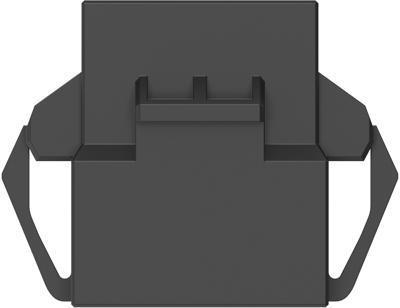

1-1903131-6 TE Connectivity PCB Connection Systems Image 4

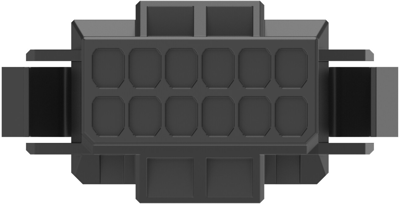

1-1903131-6 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.9754 € *
Available in 5 Days: 5,795 pcs. - if ordered today
Total Price:
9.88 € *
Price list
Quantity
Price per unit*
5 pcs.
1.9754 €
10 pcs.
1.8326 €
25 pcs.
1.7017 €
50 pcs.
1.5470 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-1903131-6, TE Connectivity

Wire-to-Panel, Wire & Cable, 12 Position

Technical Data

  • Connector Mounting Type: Panel Mount
  • Contact Type: Male
  • Housing Material: Polyester GF
  • Housing Color: black
  • Number of positions: 12
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 2.5 mm
  • Row-to-Row Spacing: 3.3 mm [0.129 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Filter Property Value
Grid 2.5 mm
Breakable No
Contact type tab
Version plug housing
Rated voltage 150 V
Orientation straight
Type of locking No
Additional parts unequipped
Number of rows 2
Colour black
Pin number 12 pole
Connection crimp connection
Logistics
Property Value
Country of origin TH
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
