1-1903130-4 | TE Connectivity

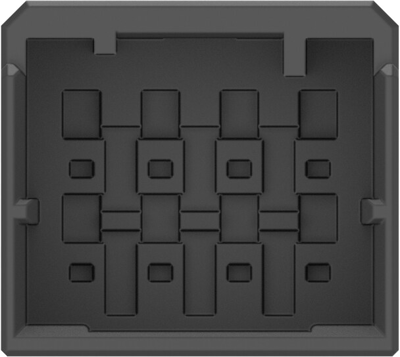

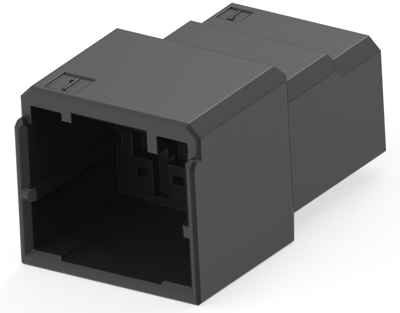

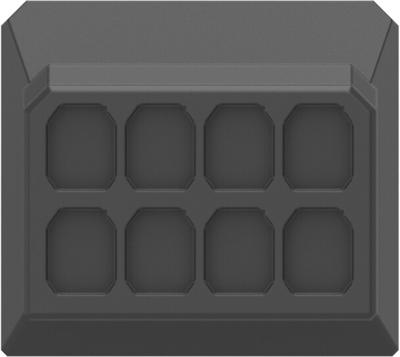

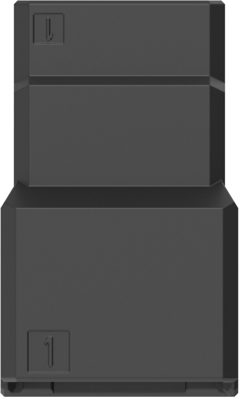

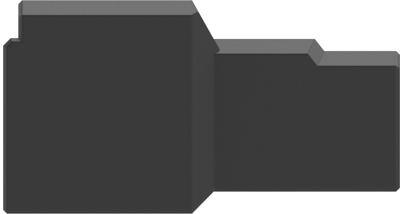

Plug housing, 8 pole, pitch 2.5 mm, straight, black, 1-1903130-4
Unit Price (€ / pc.)
0.9044 € *
Available in 5 Days: 3,435 pcs. - if ordered today
PCB Connection System, 1-1903130-4, TE Connectivity
Wire-to-Wire, Wire & Cable, 8 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Housing Material: Polyester GF
- Housing Color: black
- Number of positions: 8
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 2.5 mm
- Row-to-Row Spacing: 3.3 mm [0.129 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Colour | black | |
| Breakable | No | |
| Type of locking | Yes | |
| Grid | 2.5 mm | |
| Pin number | 8 pole | |
| Version | plug housing | |
| Additional parts | unequipped | |
| Orientation | straight | |
| Connection | crimp connection | |
| Contact type | tab | |
| Rated voltage | 150 V | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85472000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
