1-1903130-0 | TE Connectivity

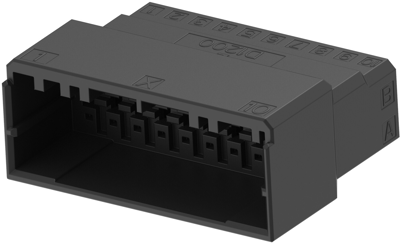

Plug housing, 20 pole, pitch 2.5 mm, straight, black, 1-1903130-0
Unit Price (€ / pc.)
0.7735 € *
Standard delivery time from the manufacturer is: 21 Weeks
PCB Connection System, 1-1903130-0, TE Connectivity
Wire-to-Wire, Wire & Cable, 20 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Housing Material: Polyester GF
- Housing Color: black
- Number of positions: 20
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 2.5 mm
- Row-to-Row Spacing: 3.3 mm [0.129 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug housing | |
| Grid | 2.5 mm | |
| Contact type | tab | |
| Rated voltage | 150 V | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Orientation | straight | |
| Colour | black | |
| Connection | crimp connection | |
| Pin number | 20 pole | |
| Breakable | No | |
| Number of rows | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
