1-1903128-6 | TE Connectivity

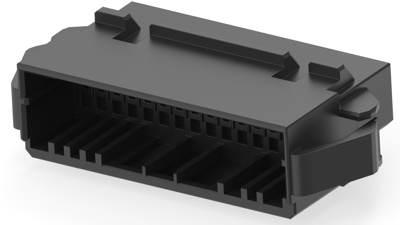

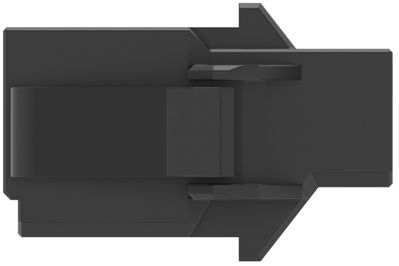

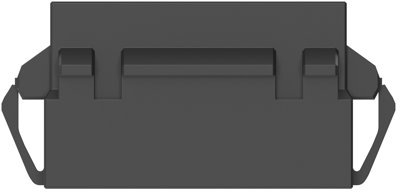

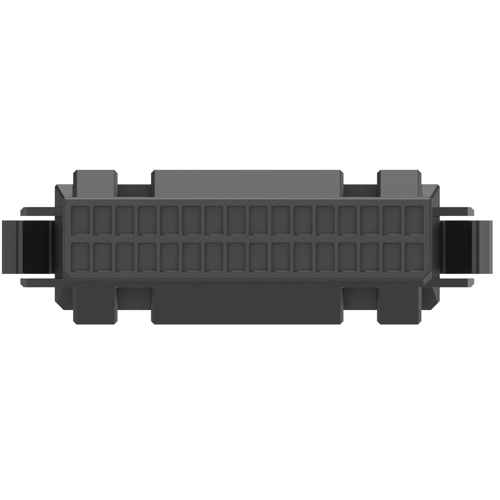

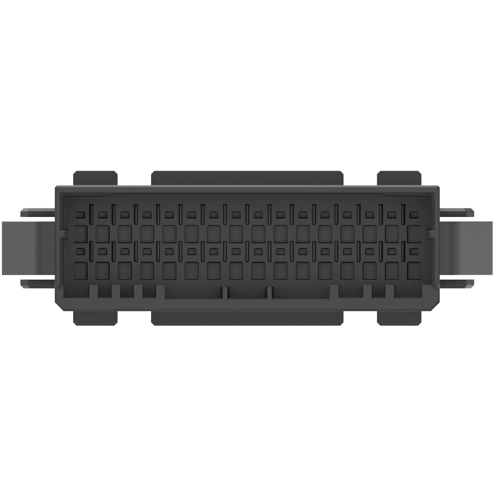

Plug housing, 32 pole, pitch 2 mm, straight, black, 1-1903128-6
Unit Price (€ / pc.)
2.7489 € *
Available in 5 Days: 7,883 pcs. - if ordered today
Total Price:
2.75 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7489 €
10 pcs.
2.5466 €
25 pcs.
2.3800 €
50 pcs.
2.1658 €
*incl. VAT plus shipping costs
Subject to prior sale
Receptacle housing, 1-1903128-6, TE Connectivity
Housing, Housing for male terminals, Wire-to-Wire, 32 Position, 2 mm Centerline, Crimp, 2 Row, Black, Mating retention.
Applications
- Industrial Control
- Production Equipment
- Servo Drives
- Power Distribution
- Industrial Process Controls
- Numeric Controllers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | crimp connection | |
| Colour | black | |
| Pin number | 32 pole | |
| Contact type | tab | |
| Orientation | straight | |
| Type of locking | Yes | |
| Rated voltage | 125 V | |
| Version | plug housing | |
| Number of rows | 2 | |
| Grid | 2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
