1-1903127-1 | TE Connectivity

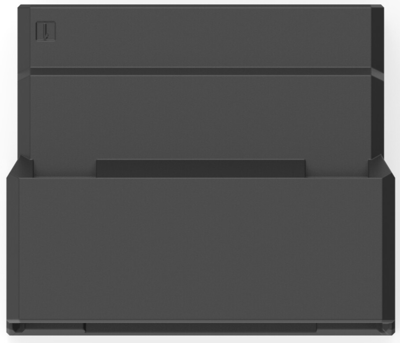

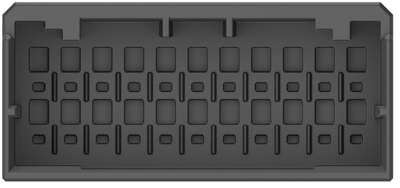

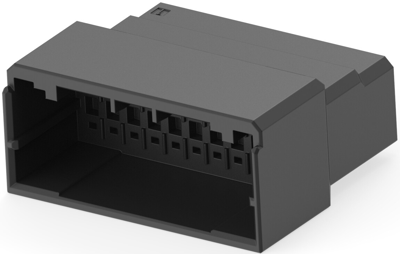

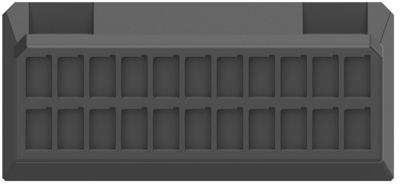

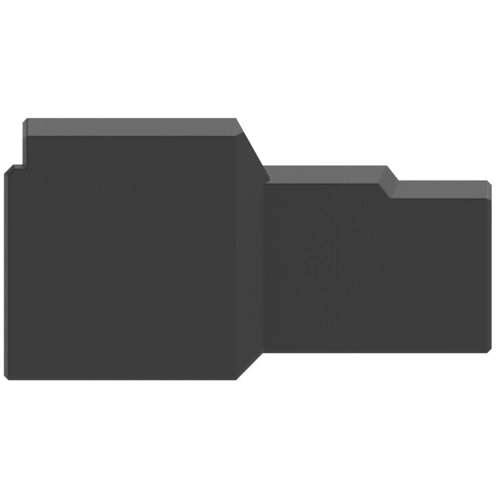

Pin header, 22 pole, pitch 2 mm, straight, black, 1-1903127-1
Unit Price (€ / pc.)
3.1297 € *
Available in 5 Days: 500 pcs. - if ordered today
Total Price:
3.13 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1297 €
10 pcs.
2.9155 €
25 pcs.
2.7132 €
50 pcs.
2.4752 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1-1903127-1, TE Connectivity
Wire-to-Wire, Wire & Cable, 22 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Housing Material: Polyester GF
- Housing Color: black
- Number of positions: 22
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 2 mm
- Row-to-Row Spacing: 3.3 mm [0.129 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2 mm | |
| Breakable | No | |
| Contact type | pin | |
| Connection | crimp connection | |
| Rated voltage | 150 V | |
| Orientation | straight | |
| Number of rows | 2 | |
| Type of locking | No | |
| Pin number | 22 pole | |
| Additional parts | unequipped | |
| Colour | black | |
| Version | pin header |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
