1-1871940-4 | TE Connectivity

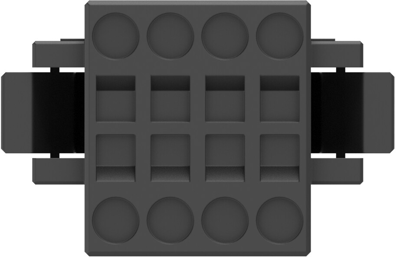

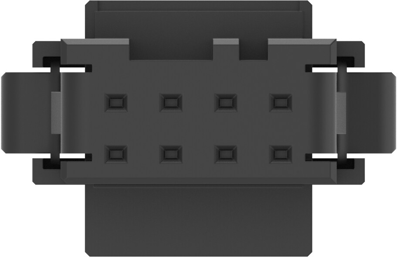

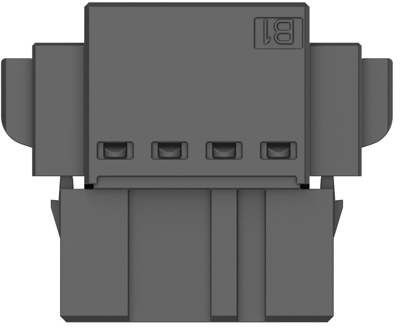

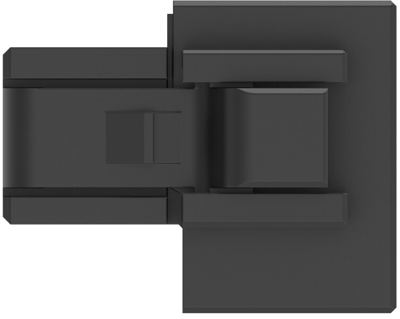

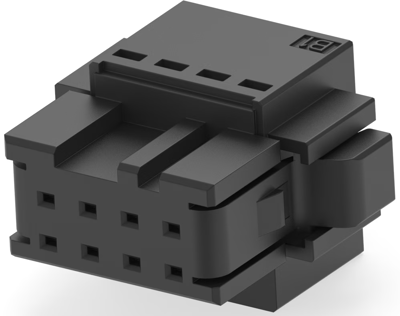

Socket housing, 8 pole, pitch 3.5 mm, straight, black, 1-1871940-4
Unit Price (€ / pc.)
6.0214 € *
Available in 5 Days: 2,821 pcs. - if ordered today
Total Price:
6.02 € *
Price list
Quantity
Price per unit*
1 pcs.
6.0214 €
10 pcs.
5.5930 €
25 pcs.
5.2122 €
50 pcs.
4.7362 €
*incl. VAT plus shipping costs
Subject to prior sale
Receptacle housing, 1-1871940-4, TE Connectivity
Housing, Receptacle, Wire-to-Board, 8 Position, 3.5 mm Centerline, Crimp, 2 Row, Black, Mating retention, Wire & Cable.
Applications
- Industrial Control
- Production Equipment
- Servo Drives
- Power Distribution
- Industrial Process Controls
- Numeric Controllers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | crimp connection | |
| Colour | black | |
| Pin number | 8 pole | |
| Contact type | socket | |
| Orientation | straight | |
| Type of locking | Yes | |
| Rated voltage | 150 V | |
| contact surface | gold-plated | |
| Version | socket housing | |
| Rated current | 4 A | |
| Number of rows | 2 | |
| Grid | 3.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
