1-1871843-6 | TE Connectivity

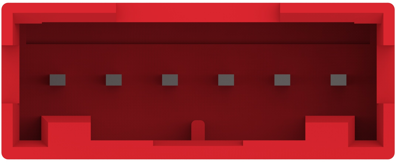

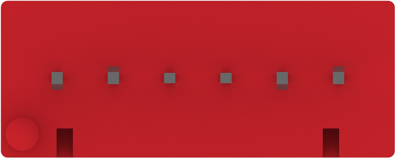

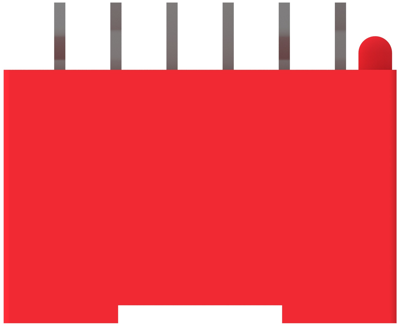

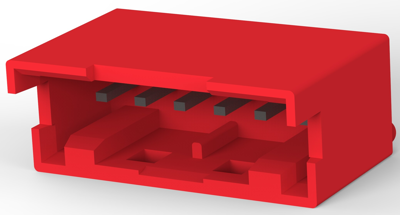

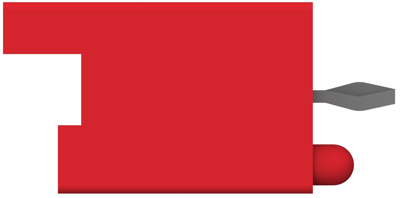

Connector, 6 pole, pitch 2.5 mm, straight, red, 1-1871843-6
Unit Price (€ / pc.)
1.0115 € *
Available in 5 Days: 1,350 pcs. - if ordered today
Total Price:
202.30 € *
Price list
Quantity
Price per unit*
200 pcs.
1.0115 €
600 pcs.
0.8568 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Header, 1-1871843-6, TE Connectivity
PCB Mount header, Vertical, Wire-to-Board, 6 Position, 2.5 mm Centerline, Fully shrouded, Tin, Through Hole-Solder.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | connector | |
| contact surface | tin-plated | |
| Pin number | 6 pole | |
| Type of locking | Yes | |
| Rated voltage | 50 V | |
| Connection plating | tin-plated | |
| Orientation | straight | |
| Contact type | tab | |
| Grid | 2.5 mm | |
| Number of rows | 1 | |
| Additional parts | equipped | |
| Connection | solder connection | |
| Rated current | 3.5 A | |
| Colour | red |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
