1-1871843-5 | TE Connectivity
Connector, 5 pole, pitch 2.5 mm, straight, red, 1-1871843-5
Unit Price (€ / pc.)
0.4641 € *
Available: 0 pcs.
Available in 5 Days: 1,730 pcs.
Leadtime: 17 Weeks **
Total Price:
208.85 € *
Price list
Quantity
Price per unit*
450 pcs.
0.4641 €
1000 pcs.
0.4522 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Header, 1-1871843-5, TE Connectivity

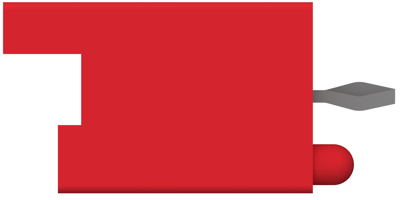

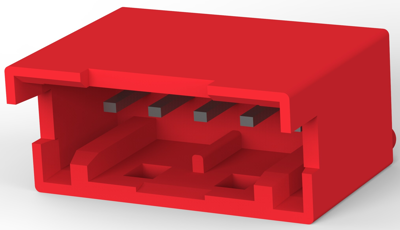

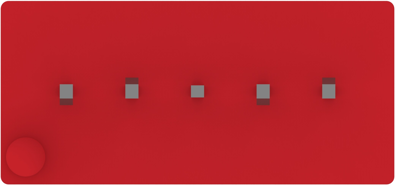

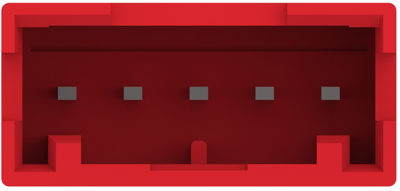

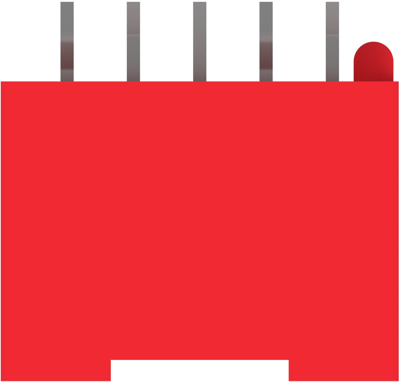

PCB Mount header, Vertical, Wire-to-Board, 5 Position, 2.5 mm Centerline, Fully shrouded, Tin, Through Hole-Solder.
Technical specifications
| Connection | Lötanschluss | |
| Connection plating | verzinnt | |
| Number of rows | 1 | |
| Version | Steckverbinder | |
| Additional parts | bestückt | |
| Colour | rot | |
| Contact type | Tab | |
| contact surface | verzinnt | |
| Rated voltage | 50 V | |
| Rated current | 3.5 A | |
| Orientation | gerade | |
| Pin number | 5-polig | |
| Grid | 2.5 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
