1-1871468-2 | TE Connectivity

Pin header, 2 pole, pitch 2.5 mm, straight, black, 1-1871468-2

Order No.: 38P6841
EAN: 4099889973518
MPN:
1-1871468-2
Series: DYNAMIC

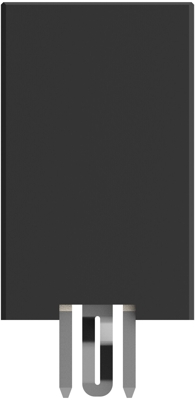

1-1871468-2 TE Connectivity PCB Connection Systems Image 1

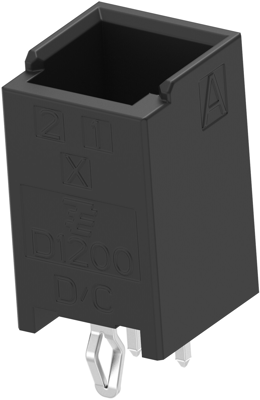

1-1871468-2 TE Connectivity PCB Connection Systems Image 2

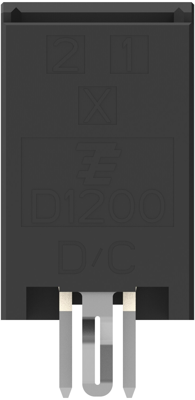

1-1871468-2 TE Connectivity PCB Connection Systems Image 3

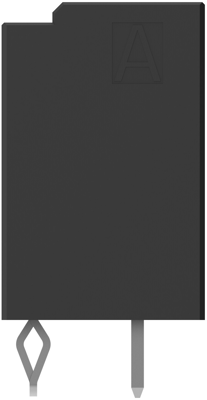

1-1871468-2 TE Connectivity PCB Connection Systems Image 4

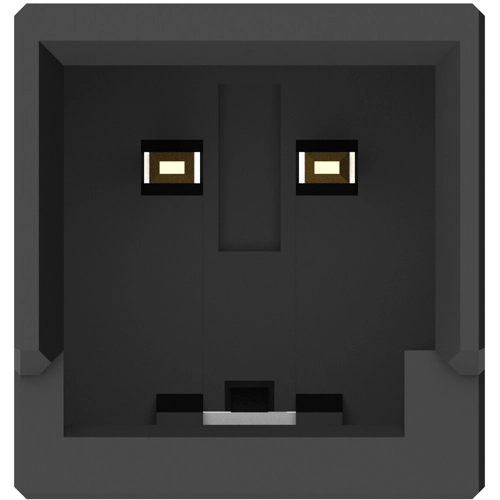

1-1871468-2 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.2372 € *
Available in 5 Days: 1,821 pcs. - if ordered today
Total Price:
11.19 € *
Price list
Quantity
Price per unit*
5 pcs.
2.2372 €
10 pcs.
2.0706 €
25 pcs.
1.9278 €
50 pcs.
1.7493 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-1871468-2, TE Connectivity

Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 2 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: Polyester GF
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 2
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.5 mm
  • PCB Mount Retention: With
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Grid 2.5 mm
Breakable No
Contact type pin
contact surface gold-plated
Version pin header
Rated current 5 A
Rated voltage 250 V
Orientation straight
Type of locking Yes
Additional parts equipped
Number of rows 1
Colour black
Pin number 2 pole
Connection PCB connection
Logistics
Property Value
Country of origin IN
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
