1-1827875-2 | TE Connectivity

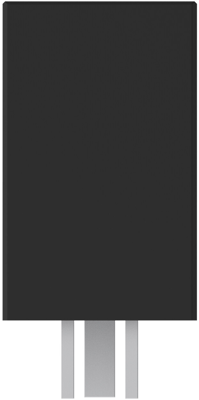

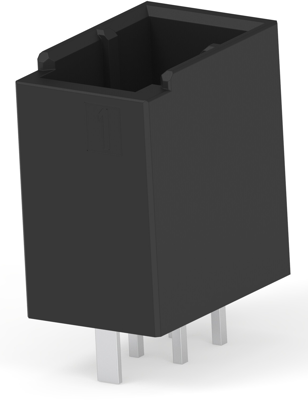

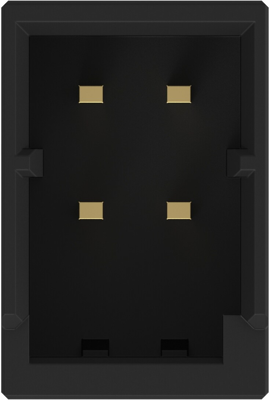

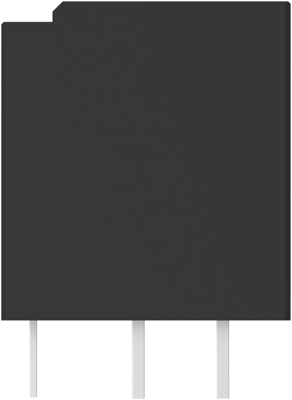

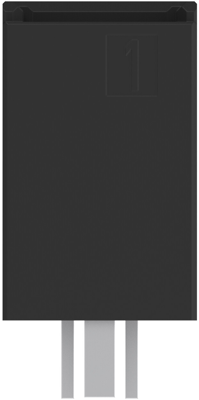

Pin header, 4 pole, pitch 2.5 mm, straight, black, 1-1827875-2
Unit Price (€ / pc.)
2.38 € *
Available: 0 pcs.
Leadtime: On Request **
PCB Connection System, 1-1827875-2, TE Connectivity
Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 4 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: Polyester
- Housing Color: black
- Orientation: straight
- Number of positions: 4
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 5 A
- Centerline (Pitch): 2.5 mm
- Row-to-Row Spacing: 3.3 mm [0.13 in]
- PCB Mount Retention: With
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Connection | PCB connection | |
| Connection plating | tin-plated | |
| Number of rows | 2 | |
| Version | pin header | |
| Additional parts | equipped | |
| Breakable | No | |
| Colour | black | |
| Contact type | pin | |
| contact surface | gold-plated | |
| Rated voltage | 250 V | |
| Rated current | 5 A | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Grid | 2.5 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
