1-1827872-7 | TE Connectivity

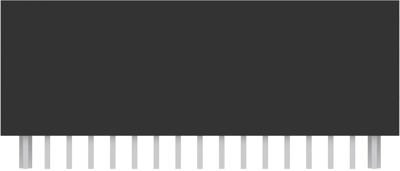

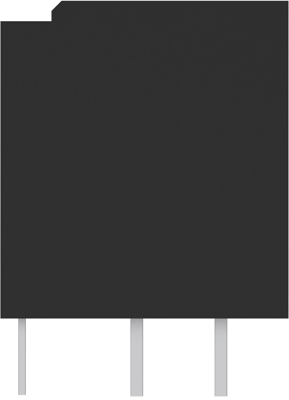

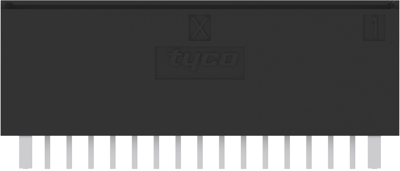

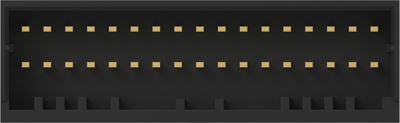

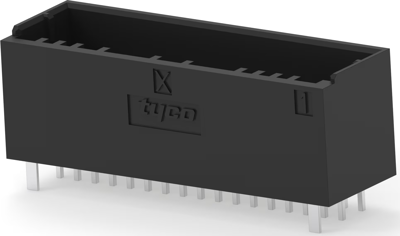

Pin header, 34 pole, pitch 2 mm, straight, black, 1-1827872-7
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
17.8262 € *
Available in 12 Days: 540 pcs. - if ordered today
Total Price:
17.83 € *
Price list
Quantity
Price per unit*
1 pcs.
17.8262 €
10 pcs.
15.9817 €
25 pcs.
14.9464 €
50 pcs.
14.0420 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin header, 1-1827872-7, TE
PCB Mount Header, Vertical, Wire-to-Board, 34-Positions, 2 mm Centerline, Fully Shrouded, Gold (Au).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 34 pole | |
| Grid | 2 mm | |
| Connection | PCB connection | |
| Orientation | straight | |
| Type of locking | Yes | |
| contact surface | gold-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 125 V | |
| Rated current | 3 A | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Breakable | No | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
