1-1827863-4 | TE Connectivity

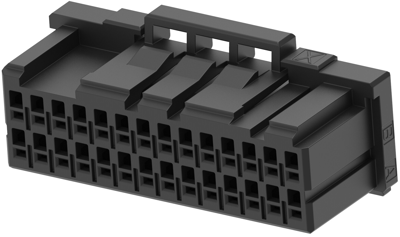

Socket header, 28 pole, pitch 2 mm, straight, black, 1-1827863-4
Unit Price (€ / pc.)
1.3447 € *
Available in 5 Days: 55,277 pcs. - if ordered today
PCB Connection System, 1-1827863-4, TE Connectivity
Wire-to-Board, Wire-to-Panel, Wire-to-Wire, Wire & Cable, 28 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Polyester GF
- Housing Color: black
- Number of positions: 28
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 2 mm
- Row-to-Row Spacing: 3.3 mm [0.129 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Colour | black | |
| Breakable | No | |
| Type of locking | Yes | |
| Grid | 2 mm | |
| Pin number | 28 pole | |
| Version | socket header | |
| Additional parts | unequipped | |
| Orientation | straight | |
| Connection | crimp connection | |
| Contact type | socket | |
| Rated voltage | 125 V | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85472000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
