1-1827862-5 | TE Connectivity

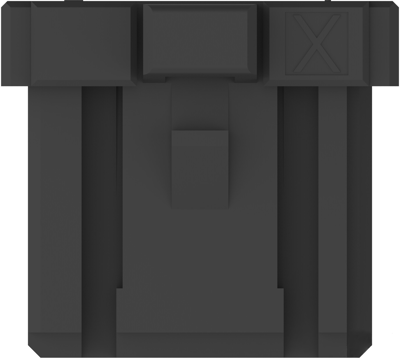

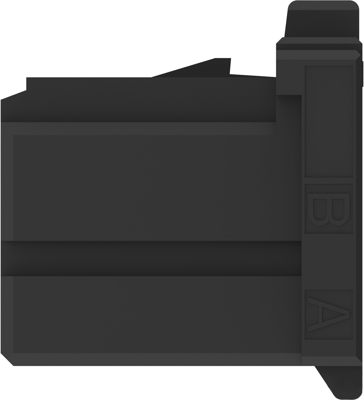

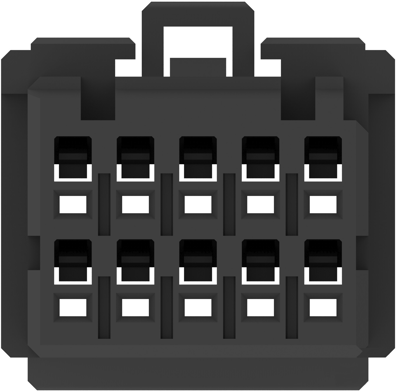

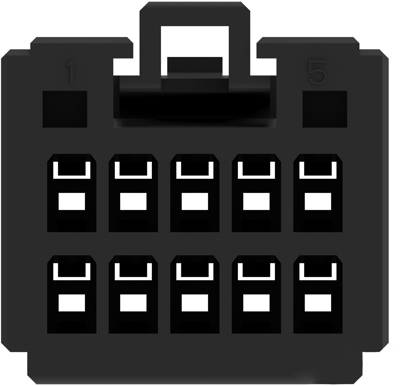

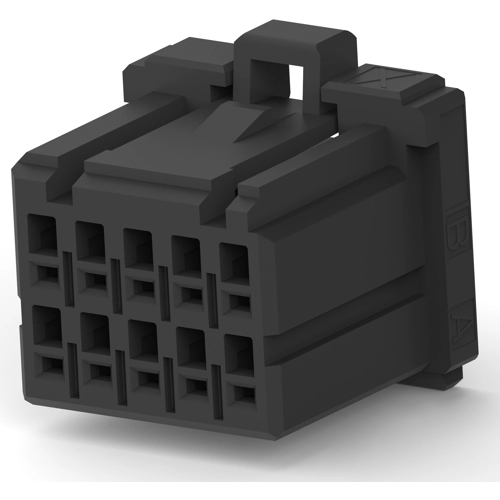

Socket header, 10 pole, pitch 2 mm, straight, black, 1-1827862-5
Unit Price (€ / pc.)
0.6902 € *
Available in 5 Days: 72,652 pcs. - if ordered today
Total Price:
3.45 € *
Price list
Quantity
Price per unit*
5 pcs.
0.6902 €
10 pcs.
0.6426 €
25 pcs.
0.5950 €
50 pcs.
0.5355 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1-1827862-5, TE Connectivity
Wire-to-Board, Wire & Cable, 10 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Polyester GF
- Housing Color: black
- Number of positions: 10
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 2 mm
- Row-to-Row Spacing: 3.3 mm [0.129 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2 mm | |
| Breakable | No | |
| Contact type | socket | |
| Version | socket header | |
| Rated voltage | 250 V | |
| Orientation | straight | |
| Type of locking | No | |
| Additional parts | unequipped | |
| Number of rows | 2 | |
| Colour | black | |
| Pin number | 10 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
