1-1775441-5 | TE Connectivity

Socket housing, 15 pole, pitch 1.5 mm, straight, natural, 1-1775441-5

Order No.: 36P9963
EAN: 4099889950939
MPN:
1-1775441-5

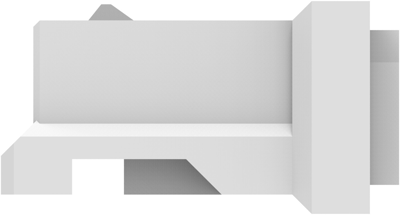

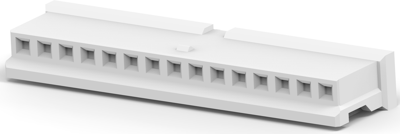

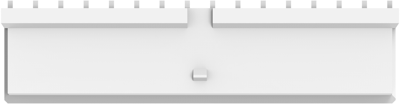

1-1775441-5 TE Connectivity PCB Connection Systems Image 1
1-1775441-5 TE Connectivity PCB Connection Systems Image 2
1-1775441-5 TE Connectivity PCB Connection Systems Image 3
1-1775441-5 TE Connectivity PCB Connection Systems Image 4
1-1775441-5 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.3332 € *
Available in 5 Days: 7,385 pcs. - if ordered today
Total Price:
1.67 € *
Price list
Quantity
Price per unit*
5 pcs.
0.3332 €
10 pcs.
0.3058 €
25 pcs.
0.2856 €
50 pcs.
0.2582 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-1775441-5, TE Connectivity

Wire-to-Wire, Wire & Cable, 15 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Thermoplastic
  • Housing Color: natural
  • Number of positions: 15
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 3 A
  • Centerline (Pitch): 1.5 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Grid 1.5 mm
Breakable No
Contact type socket
Version socket housing
Rated current 3 A
Rated voltage 250 V
Orientation straight
Type of locking Yes
Additional parts unequipped
Number of rows 1
Colour natural
Pin number 15 pole
Connection crimp connection
Logistics
Property Value
Country of origin US
Customs tariff number 85366910
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
