1-1775441-1 | TE Connectivity

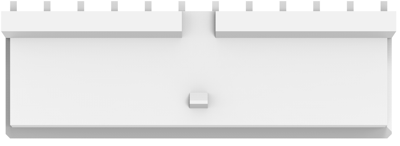

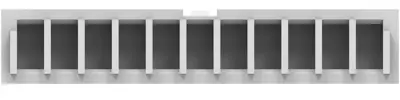

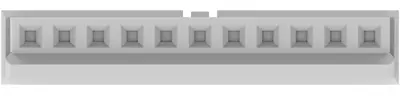

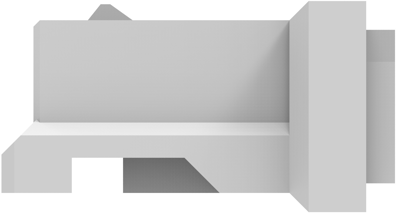

Socket housing, 11 pole, pitch 1.5 mm, straight, natural, 1-1775441-1
Unit Price (€ / pc.)
0.2285 € *
Available in 5 Days: 18,000 pcs. - if ordered today
Total Price:
22.85 € *
Price list
Quantity
Price per unit*
100 pcs.
0.2285 €
250 pcs.
0.2106 €
500 pcs.
0.1952 €
1000 pcs.
0.1761 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Header, 1-1775441-1, TE Connectivity
The 1-1775441-1 is a PCB Mount header, that enables inter-changeability with industry standard designs. This product can be used anywhere a signal or low power that needs to be routed through a device. Ensures proper compatibility of both the header and the housing.
Features
- Vertical and horizontal PCB mount
- Polarized
- Partially and fully shrouded
- Provides design flexibility
- Prevents stubbing contacts
Applications
- Business and retail equipment
- Consumer devices
- Industrial
- Automotive
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 1.5 mm | |
| Contact type | socket | |
| Version | socket housing | |
| Rated current | 3 A | |
| Rated voltage | 250 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Number of rows | 1 | |
| Colour | natural | |
| Pin number | 11 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
