1-1775099-3 | TE Connectivity

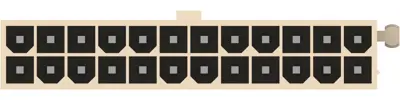

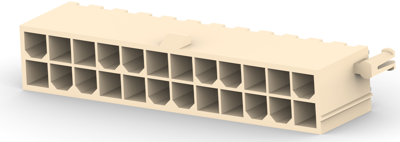

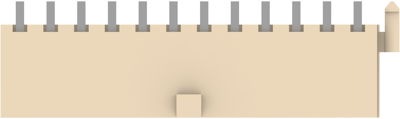

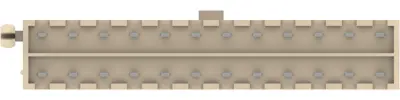

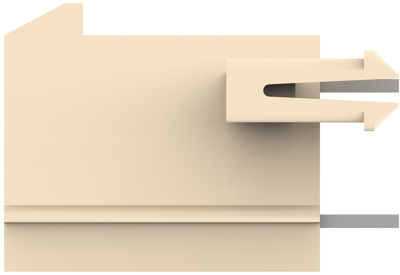

Socket header, 24 pole, pitch 4.2 mm, straight, ivory, 1-1775099-3
Order No.: 36P9843
EAN: 4099889950670
MPN:
1-1775099-3
Unit Price (€ / pc.)
0.714 € *
Available in 5 Days: 4,720 pcs. - if ordered today
PCB Connection System, 1-1775099-3, TE Connectivity
Wire-to-Board, Printed Circuit Board, Vertical, 24 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Female
- Housing Material: PA 9T
- Orientation: straight
- Number of positions: 24
- Operating Temperature Range: -25 – 85 °C [-13 – 185 °F]
- Rated current: 9 A
- Centerline (Pitch): 4.2 mm
- Row-to-Row Spacing: 4.2 mm [0.165 in]
- PCB Mount Retention: With
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| Contact type | socket | |
| Pin number | 24 pole | |
| Grid | 4.2 mm | |
| Connection | PCB connection | |
| Orientation | straight | |
| Type of locking | Yes | |
| contact surface | tin-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 176 V | |
| Rated current | 9 A | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Breakable | No | |
| Colour | ivory |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
