1-1747820-2 | TE Connectivity

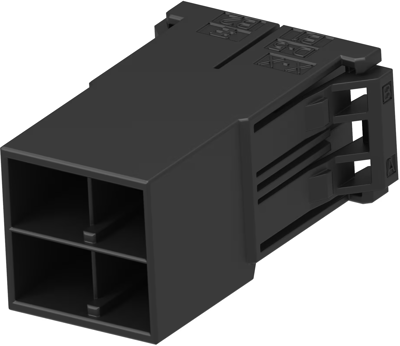

Plug housing, 4 pole, pitch 10.16 mm, straight, black, 1-1747820-2
Unit Price (€ / pc.)
4.1888 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
4.19 € *
Price list
Quantity
Price per unit*
1 pcs.
4.1888 €
10 pcs.
3.8913 €
25 pcs.
3.6295 €
50 pcs.
3.2963 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1-1747820-2, TE Connectivity
Wire-to-Panel, Wire & Cable, 4 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Housing Material: Polyester GF
- Housing Color: black
- Number of positions: 4
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 10.16 mm
- Row-to-Row Spacing: 10.16 mm [0.399 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Breakable | No | |
| Rated voltage | 630 V | |
| Version | plug housing | |
| Number of rows | 2 | |
| Orientation | straight | |
| Additional parts | unequipped | |
| Pin number | 4 pole | |
| Grid | 10.16 mm | |
| Type of locking | No | |
| Contact type | tab | |
| Colour | black | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
