1-1746741-6 | TE Connectivity

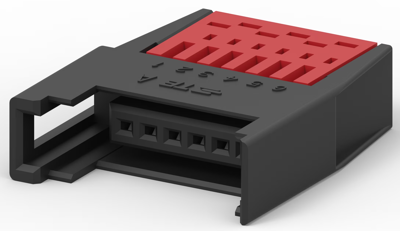

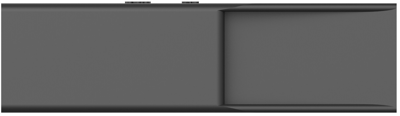

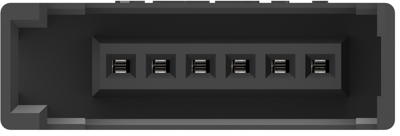

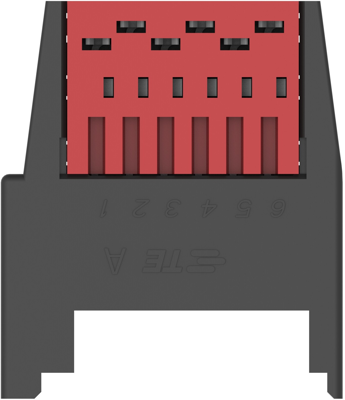

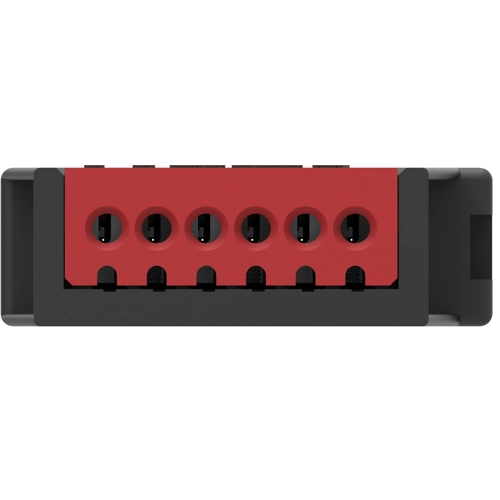

Socket header, 6 pole, pitch 2 mm, straight, red, 1-1746741-6
Unit Price (€ / pc.)
6.0690 € *
Available in 5 Days: 1,200 pcs. - if ordered today
Total Price:
6.07 € *
Price list
Quantity
Price per unit*
1 pcs.
6.0690 €
10 pcs.
5.6287 €
25 pcs.
5.2598 €
50 pcs.
4.7838 €
*incl. VAT plus shipping costs
Subject to prior sale
Connector assembly, 1-1746741-6, TE Connectivity
Standard rectangular connector, Connector assembly, Receptacle, Mating alignment, Polarization Mating alignment type.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 3 A | |
| contact surface | gold-plated | |
| Colour | red | |
| Additional parts | unequipped | |
| Contact type | socket | |
| Connection plating | nickel-plated | |
| Grid | 2 mm | |
| Orientation | straight | |
| Rated voltage | 32 V | |
| Connection | crimp connection | |
| Pin number | 6 pole | |
| Version | socket header | |
| Type of locking | Yes | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
