1-1744524-0 | TE Connectivity

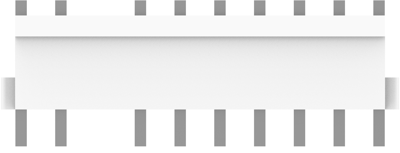

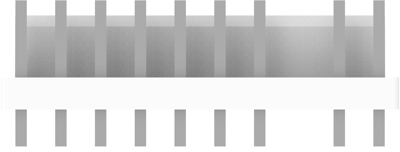

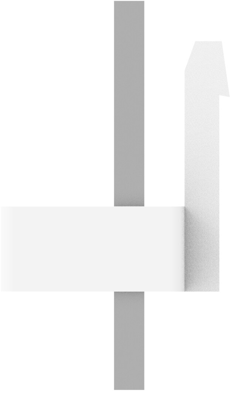

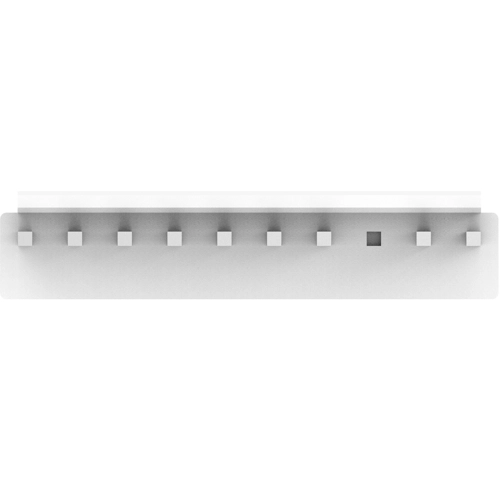

Pin header, 10 pole, pitch 3.96 mm, straight, natural, 1-1744524-0
Unit Price (€ / pc.)
0.9044 € *
Available in 5 Days: 1,921 pcs. - if ordered today
Total Price:
4.52 € *
Price list
Quantity
Price per unit*
5 pcs.
0.9044 €
10 pcs.
0.8330 €
25 pcs.
0.7854 €
50 pcs.
0.7021 €
*incl. VAT plus shipping costs
Subject to prior sale
Power connector, 1-1744524-0, TE Connectivity
The 1-1744524-0 is a economy power connector that is widely utilized for power circuit applications that require a large current carrying capacity. This product has end to end stackable and intermateable to similar competitive products for retrofit applications.
Features
- Positive audible latch designed for easier mating and unmating
- Asymmetrical terminals prevent mis-mating
- Polarization tabs help prevent post misalignment
Applications
- Household appliances
- Industrial machinery
- Commercial & building equipment
- Vending machines & coin changers
- Lighting
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Type of locking | Yes | |
| Additional parts | equipped | |
| Connection plating | tin-plated | |
| Rated current | 8 A | |
| Version | pin header | |
| Connection | solder connection | |
| contact surface | tin-plated | |
| Number of rows | 1 | |
| Colour | natural | |
| Grid | 3.96 mm | |
| Contact type | pin | |
| Pin number | 10 pole | |
| Rated voltage | 250 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
