1-1744426-7 | TE Connectivity

Pin header, 17 pole, pitch 2.5 mm, angled, white, 1-1744426-7

Order No.: 34P7384
EAN: 4099889915624
MPN:
1-1744426-7

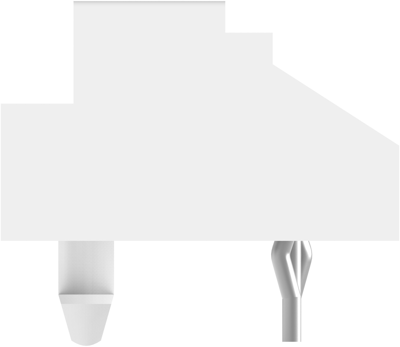

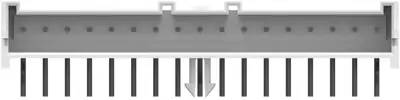

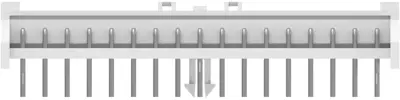

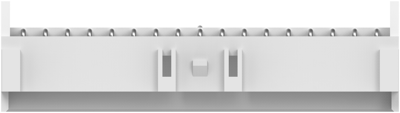

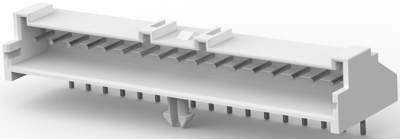

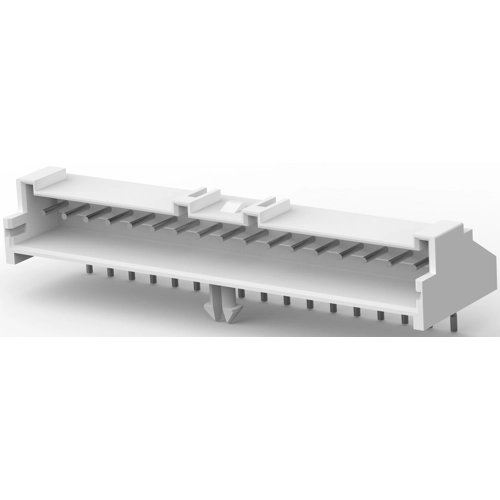

1-1744426-7 TE Connectivity PCB Connection Systems Image 1

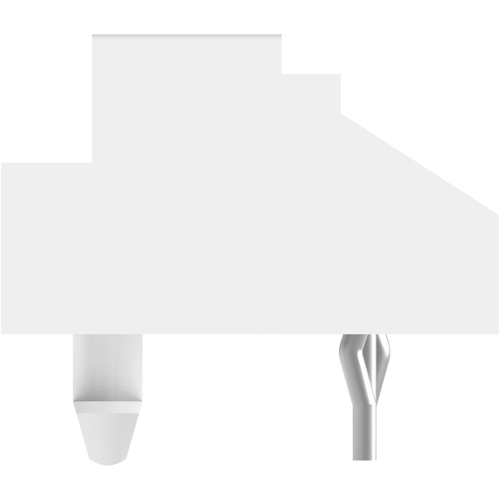

1-1744426-7 TE Connectivity PCB Connection Systems Image 2

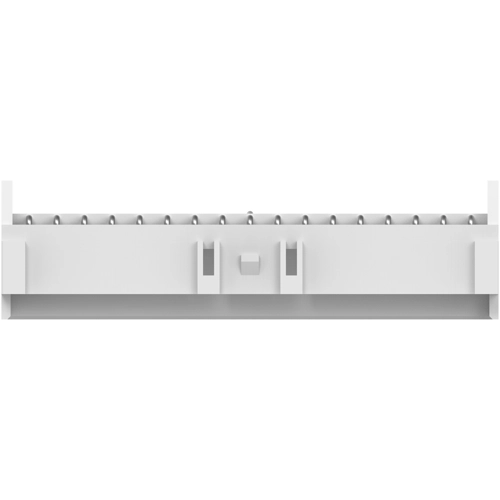

1-1744426-7 TE Connectivity PCB Connection Systems Image 3

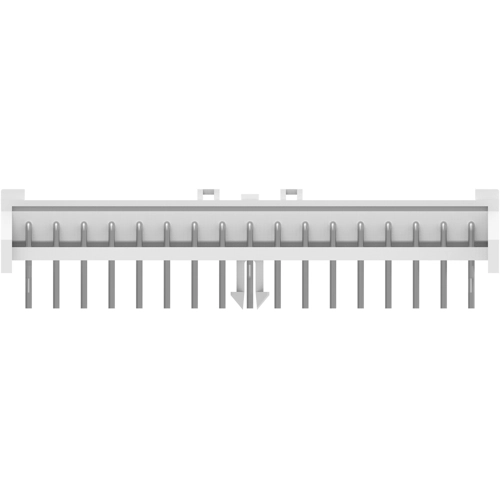

1-1744426-7 TE Connectivity PCB Connection Systems Image 4

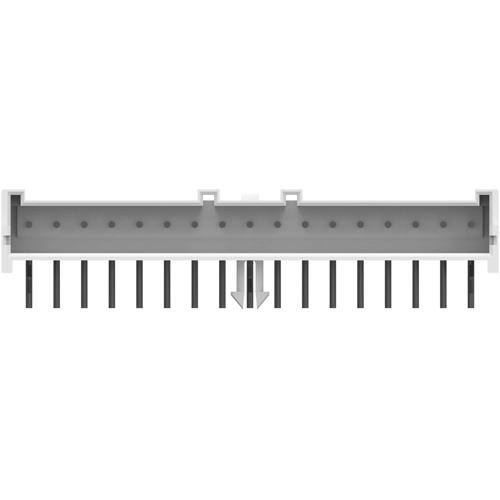

1-1744426-7 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.2971 € *
Available in 5 Days: 2,075 pcs. - if ordered today
Total Price:
1.30 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2971 €
10 pcs.
1.1781 €
50 pcs.
1.0591 €
100 pcs.
0.9520 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-1744426-7, TE Connectivity

Wire-to-Board, Printed Circuit Board, Shrouded, Right Angle, 17 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Brass
  • Housing Material: Nylon
  • Housing Color: white
  • Orientation: angled
  • Number of positions: 17
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 4.5 A
  • Centerline (Pitch): 2.5 mm
  • PCB Mount Retention: With
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Version pin header
Contact type pin
Pin number 17 pole
Grid 2.5 mm
Connection PCB connection
Orientation angled
Type of locking Yes
contact surface tin-plated
Connection plating tin-plated
Rated voltage 250 V
Rated current 4.5 A
Additional parts equipped
Number of rows 1
Breakable No
Colour white
Logistics
Property Value
Country of origin US
Customs tariff number 85366910
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
