1-1744417-4 | TE Connectivity

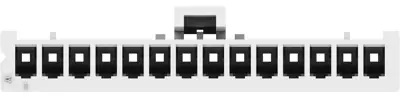

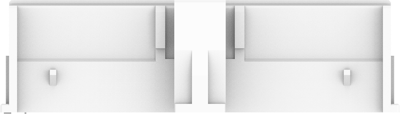

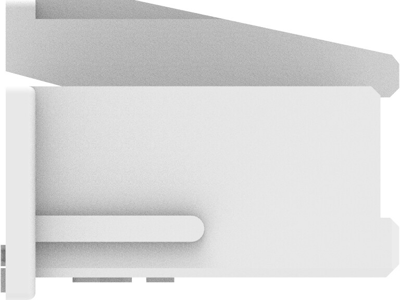

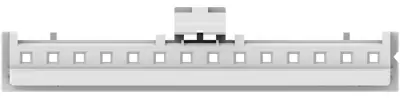

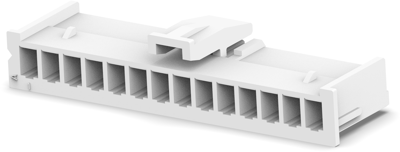

Plug housing, 14 pole, pitch 2.5 mm, straight, natural, 1-1744417-4
Order No.: 34P7396
EAN: 4099889915723
MPN:
1-1744417-4
Unit Price (€ / pc.)
0.1904 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
1.90 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1904 €
50 pcs.
0.1761 €
100 pcs.
0.1642 €
250 pcs.
0.1488 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1-1744417-4, TE Connectivity
Wire-to-Board, Wire & Cable, 14 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Nylon
- Housing Color: natural
- Number of positions: 14
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 2.5 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | crimp connection | |
| Colour | natural | |
| Additional parts | unequipped | |
| Pin number | 14 pole | |
| Contact type | socket | |
| Orientation | straight | |
| Type of locking | Yes | |
| Breakable | No | |
| Rated voltage | 250 V | |
| Version | plug housing | |
| Number of rows | 1 | |
| Grid | 2.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85389011 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
