1-1744417-2 | TE Connectivity

Plug housing, 12 pole, pitch 2.5 mm, straight, natural, 1-1744417-2

Order No.: 34P7394
EAN: 4099889915709
MPN:
1-1744417-2
Series: Economy Power

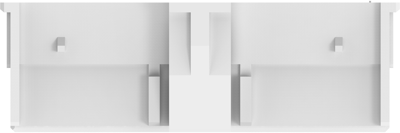

1-1744417-2 TE Connectivity PCB Connection Systems Image 1

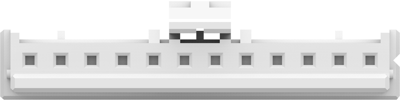

1-1744417-2 TE Connectivity PCB Connection Systems Image 2

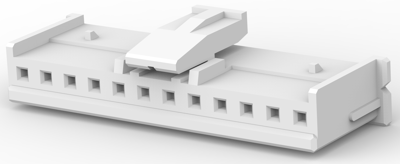

1-1744417-2 TE Connectivity PCB Connection Systems Image 3

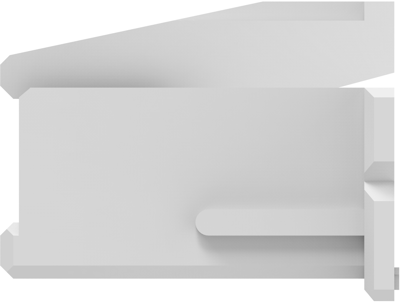

1-1744417-2 TE Connectivity PCB Connection Systems Image 4

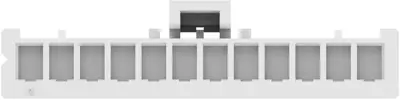

1-1744417-2 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2142 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
0.43 € *
Price list
Quantity
Price per unit*
2 pcs.
0.2142 €
10 pcs.
0.1952 €
100 pcs.
0.1749 €
500 pcs.
0.1571 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-1744417-2, TE Connectivity

Wire-to-Board, Wire & Cable, 12 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: natural
  • Number of positions: 12
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 2.5 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour natural
Breakable No
Type of locking Yes
Grid 2.5 mm
Pin number 12 pole
Version plug housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type socket
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin TW
Customs tariff number 85389011
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
