1-1744416-2 | TE Connectivity

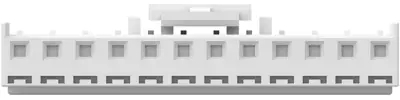

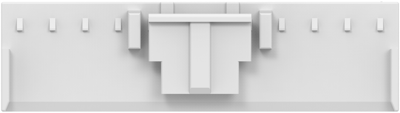

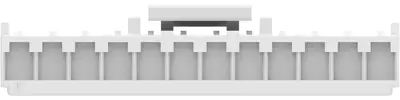

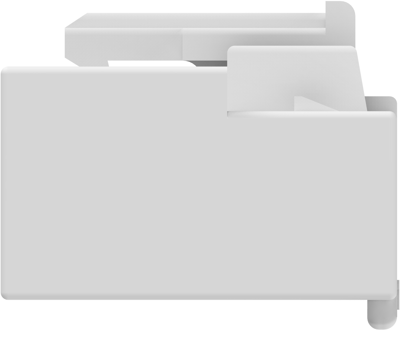

Socket header, 12 pole, pitch 3.96 mm, straight, natural, 1-1744416-2
Unit Price (€ / pc.)
1.0948 € *
Available: 0 pcs.
Leadtime: 21 Weeks **
PCB Connection System, 1-1744416-2, TE Connectivity
Wire-to-Board, Wire & Cable, 12 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Nylon
- Housing Color: natural
- Number of positions: 12
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 3.96 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 1 | |
| Version | Buchsenleiste | |
| Additional parts | unbestückt | |
| Breakable | No | |
| Colour | natur | |
| Contact type | Buchse | |
| Rated voltage | 600 V | |
| Orientation | gerade | |
| Pin number | 12-polig | |
| Grid | 3.96 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85389011 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
