1-1744036-0 | TE Connectivity

Socket header, 10 pole, pitch 5.08 mm, straight, natural, 1-1744036-0

Order No.: 34P7218
EAN: 4099889914504
MPN:
1-1744036-0

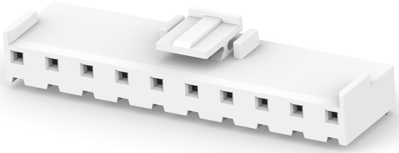

1-1744036-0 TE Connectivity PCB Connection Systems Image 1

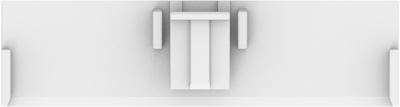

1-1744036-0 TE Connectivity PCB Connection Systems Image 2

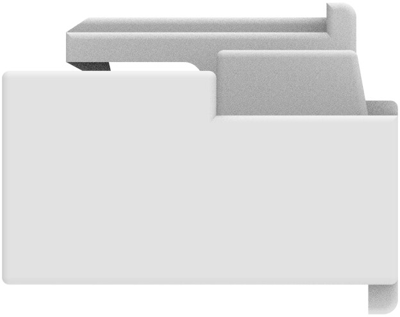

1-1744036-0 TE Connectivity PCB Connection Systems Image 3

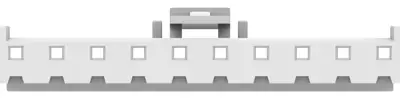

1-1744036-0 TE Connectivity PCB Connection Systems Image 4

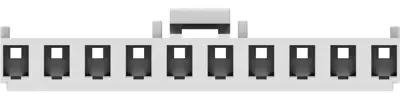

1-1744036-0 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.4522 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
1,808.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
4000 pcs.
0.4522 €

PCB Connection System, 1-1744036-0, TE Connectivity

Wire-to-Board, Wire & Cable, 10 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: natural
  • Number of positions: 10
  • Operating Temperature Range: -25 – 105 °C [-13 – 221 °F]
  • Rated current: 7.5 A
  • Centerline (Pitch): 5.08 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Connection crimp connection
Colour natural
Additional parts unequipped
Pin number 10 pole
Contact type socket
Orientation straight
Type of locking Yes
Breakable No
Rated voltage 250 V
Version socket header
Rated current 7.5 A
Number of rows 1
Grid 5.08 mm
Logistics
Property Value
Country of origin TW
Customs tariff number 85472000
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
