1-1586861-2 | TE Connectivity

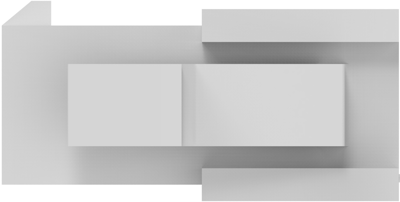

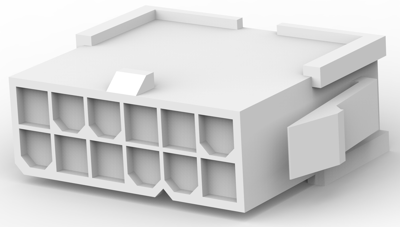

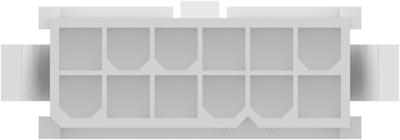

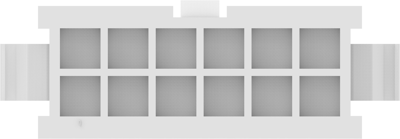

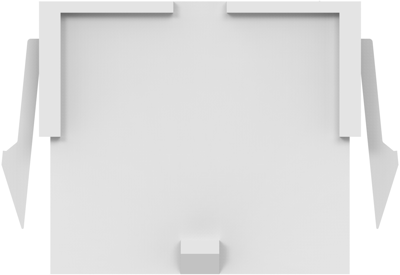

Plug housing, 12 pole, pitch 4.2 mm, straight, white, 1-1586861-2
Order No.: 35P5444
EAN: 4099889938685
MPN:
1-1586861-2
Unit Price (€ / pc.)
0.3213 € *
Standard delivery time from the manufacturer is: 20 Weeks
PCB Connection System, 1-1586861-2, TE Connectivity
Wire-to-Panel, Wire-to-Wire, Wire & Cable, 12 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Male
- Housing Material: Polyamide
- Housing Color: white
- Number of positions: 12
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Centerline (Pitch): 4.2 mm
- Row-to-Row Spacing: 4.2 mm [0.165 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug housing | |
| Number of rows | 2 | |
| Connection | crimp connection | |
| Contact type | pin | |
| Additional parts | unequipped | |
| Grid | 4.2 mm | |
| Pin number | 12 pole | |
| Rated voltage | 600 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Breakable | No | |
| Colour | white |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
