1-1586861-0 | TE Connectivity

Plug housing, 10 pole, pitch 4.2 mm, straight, white, 1-1586861-0

Order No.: 35P5435
EAN: 4099889938609
MPN:
1-1586861-0
Series: VAL-U-LOK

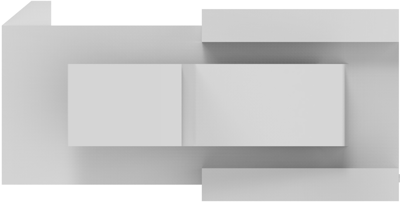

1-1586861-0 TE Connectivity PCB Connection Systems Image 1

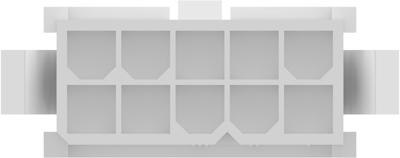

1-1586861-0 TE Connectivity PCB Connection Systems Image 2

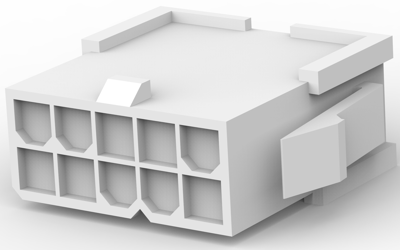

1-1586861-0 TE Connectivity PCB Connection Systems Image 3

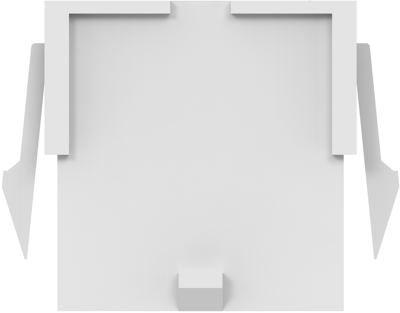

1-1586861-0 TE Connectivity PCB Connection Systems Image 4

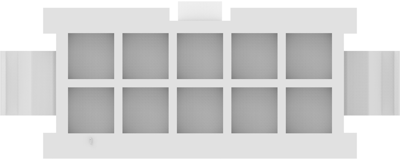

1-1586861-0 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2796 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
2,796.50 € *
*incl. VAT plus shipping costs
Subject to prior sale
10000 pcs.
0.2796 €

PCB Connection System, 1-1586861-0, TE Connectivity

Wire-to-Panel, Wire-to-Wire, Wire & Cable, 10 Position

Technical Data

  • Connector Mounting Type: Panel Mount
  • Contact Type: Male
  • Housing Material: Polyamide
  • Housing Color: white
  • Number of positions: 10
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Centerline (Pitch): 4.2 mm
  • Row-to-Row Spacing: 4.2 mm [0.165 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Colour white
Breakable No
Type of locking Yes
Grid 4.2 mm
Pin number 10 pole
Version plug housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type pin
Rated voltage 600 V
Number of rows 2
Logistics
Country of origin MX
Customs tariff number 85389091
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
