1-1586683-5 | TE Connectivity

Pin header, 15 pole, pitch 6.35 mm, straight, white, 1-1586683-5

Order No.: 35P4880
EAN: 4099889935301
MPN:
1-1586683-5

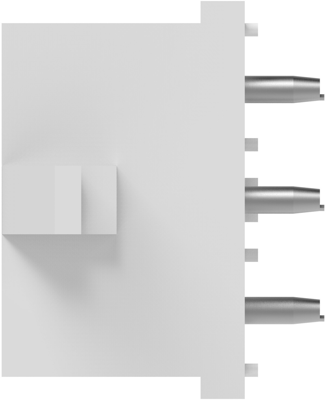

1-1586683-5 TE Connectivity PCB Connection Systems Image 1

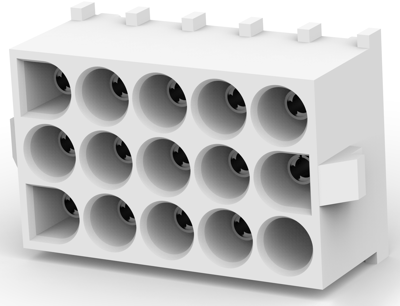

1-1586683-5 TE Connectivity PCB Connection Systems Image 2

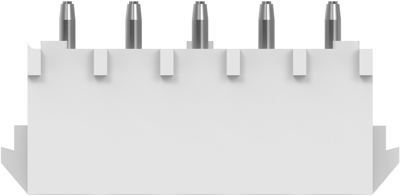

1-1586683-5 TE Connectivity PCB Connection Systems Image 3

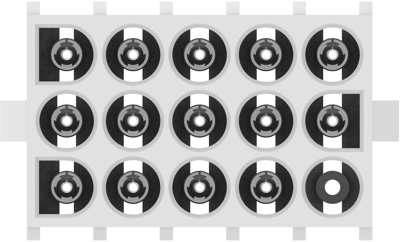

1-1586683-5 TE Connectivity PCB Connection Systems Image 4
1-1586683-5 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
3.2606 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
1,271.63 € *
*incl. VAT plus shipping costs
Subject to prior sale
390 pcs.
3.2606 €

PCB Connection System, 1-1586683-5, TE Connectivity

Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 15 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Female
  • Contact Base Material: Phosphor Bronze
  • Housing Material: Nylon
  • Housing Color: white
  • Orientation: straight
  • Number of positions: 15
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Rated current: 12 A
  • Centerline (Pitch): 6.35 mm
  • Row-to-Row Spacing: 6.35 mm [0.25 in]
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Filter Property Value
Version pin header
Contact type socket
Pin number 15 pole
Grid 6.35 mm
Connection PCB connection
Orientation straight
Type of locking Yes
contact surface pre-tinned
Connection plating pre-tinned
Rated voltage 600 V
Rated current 12 A
Additional parts equipped
Number of rows 3
Breakable No
Colour white
Logistics
Property Value
Country of origin DE
Customs tariff number 85366910
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
