1-1554590-0 | TE Connectivity

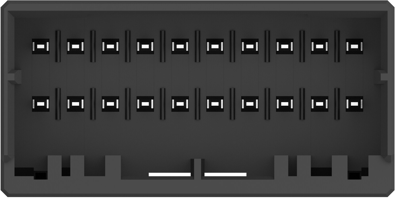

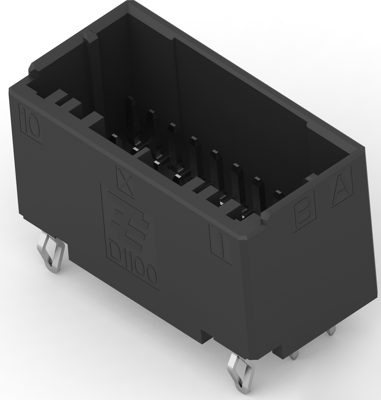

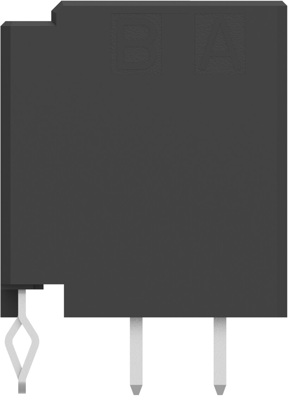

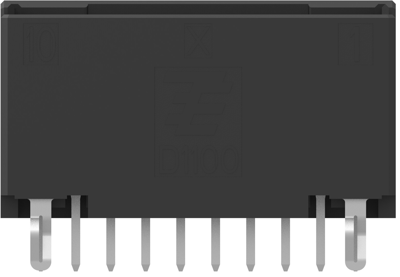

Pin header, 20 pole, pitch 2 mm, straight, black, 1-1554590-0
Unit Price (€ / pc.)
5.7715 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
5.77 € *
Price list
Quantity
Price per unit*
1 pcs.
5.7715 €
10 pcs.
5.3550 €
25 pcs.
4.9980 €
50 pcs.
4.5458 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin header, 1-1554590-0, TE Connectivity
PCB Mount header, Vertical, Wire-to-Board, 20 Position, 2 mm Centerline, Fully shrouded, Tin, Through Hole-Solder.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 3 A | |
| Version | pin header | |
| Number of rows | 2 | |
| Connection | solder connection | |
| Contact type | pin | |
| Additional parts | equipped | |
| Grid | 2 mm | |
| Pin number | 20 pole | |
| Rated voltage | 125 V | |
| Orientation | straight | |
| contact surface | tin-plated | |
| Type of locking | Yes | |
| Connection plating | tin-plated | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
