1-1470107-2 | TE Connectivity

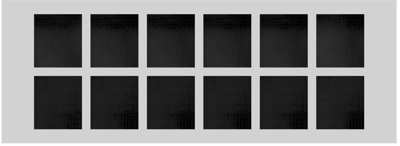

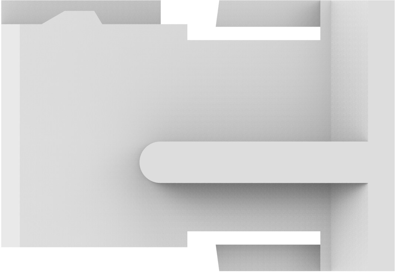

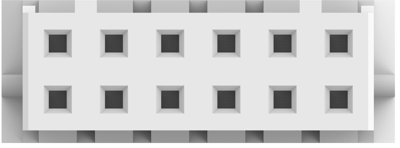

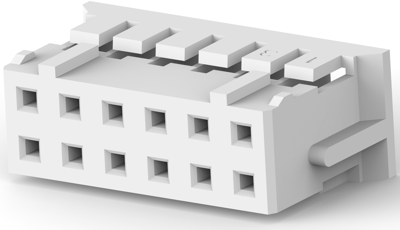

Socket housing, 12 pole, pitch 2 mm, straight, white, 1-1470107-2
Order No.: 36P9975
EAN: 4099889951028
MPN:
1-1470107-2
Unit Price (€ / pc.)
0.1440 € *
Standard delivery time from the manufacturer is: 10 Weeks
PCB Connection System, 1-1470107-2, TE Connectivity
Wire-to-Wire, Wire & Cable, 12 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Contact Base Material: Copper Alloy
- Housing Material: Thermoplastic
- Housing Color: white
- Number of positions: 12
- Operating Temperature Range: -25 – 85 °C [-13 – 185 °F]
- Rated current: 3 A
- Centerline (Pitch): 2 mm
- Row-to-Row Spacing: 2 mm [0.0786 in]
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2 mm | |
| Pin number | 12 pole | |
| Colour | white | |
| Contact type | socket | |
| Rated current | 3 A | |
| Version | socket housing | |
| Connection | crimp connection | |
| Additional parts | unequipped | |
| Number of rows | 2 | |
| Rated voltage | 100 V | |
| contact surface | tin-plated | |
| Breakable | No | |
| Orientation | straight | |
| Type of locking | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | AT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
