1-2322423-2 | TE Connectivity

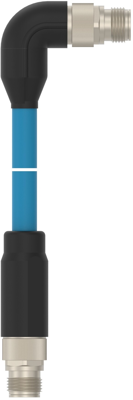

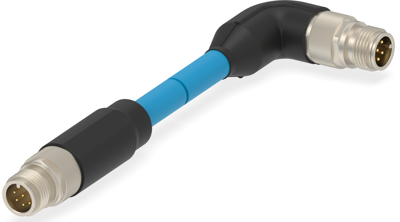

Network cable, M12-plug, straight to M12-plug, angled, Cat 7, S/FTP, 6.5 m, blue, 1-2322423-2
Order No.: 71P1613
EAN: 4099891647063
MPN:
1-2322423-2
Unit Price (€ / pc.)
193.1727 € *
Available in 5 Days: 8 pcs. - if ordered today
Total Price:
386.35 € *
Price list
Quantity
Price per unit*
2 pcs.
193.1727 €
3 pcs.
189.5908 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable assembly, 1-2322423-2, TE Connectivity
The 1-2322423-2 has a ruggedized design so the cable can withstand severe shocks and vibrations. It delivers the best data speed that allows the cable to be used in confined areas. The unique crimped cable strain relief eliminates conductor breakage and ultimately system failure. At the same time, the crimping system creates a tamper proof installation, eliminating accidental opening of the connector.
Features
- Pre-assembled cable assembly
- Fire and smoke compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 24 | |
| Colour | blue | |
| Connection (1) | M12-plug, straight | |
| Detent lever protection available | Yes | |
| Degree of protection (IP) | IP67 | |
| Cable length | 6.5 m | |
| Halogen free | No | |
| Cable type | S/FTP | |
| Version | network cable | |
| Category | Cat 7 | |
| Connection (2) | M12-plug, angled |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | No |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
