1-2322423-0 | TE Connectivity

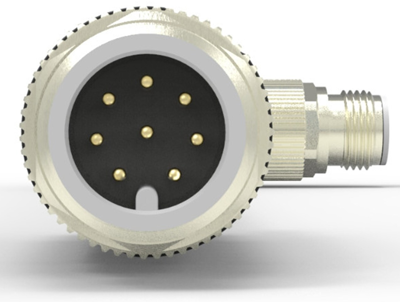

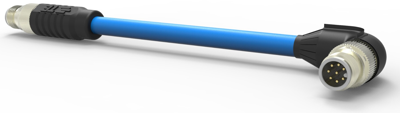

Network cable, M12-plug, straight to M12-plug, angled, Cat 7, S/FTP, 5.5 m, blue, 1-2322423-0
Order No.: 71P1611
EAN: 4099891647049
MPN:
1-2322423-0
Unit Price (€ / pc.)
184.0930 € *
Available: 0 pcs.
Available in 5 Days: 8 pcs.
Leadtime: 15 Weeks **
Total Price:
368.19 € *
Price list
Quantity
Price per unit*
2 pcs.
184.0930 €
3 pcs.
180.6777 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable assembly, 1-2322423-0, TE Connectivity
The 1-2322423-0 has a ruggedized design so the cable can withstand severe shocks and vibrations. It delivers the best data speed that allows the cable to be used in confined areas. The unique crimped cable strain relief eliminates conductor breakage and ultimately system failure. At the same time, the crimping system creates a tamper proof installation, eliminating accidental opening of the connector.
Features
- Pre-assembled cable assembly
- Fire and smoke compliant
Technical specifications
| Cable length | 5.5 m | |
| Colour | blue | |
| Degree of protection (IP) | IP67 | |
| AWG cross-section | AWG 24 | |
| Halogen free | No | |
| Connection (2) | M12-plug, angled | |
| Version | network cable | |
| Category | Cat 7 | |
| Detent lever protection available | Yes | |
| Cable type | S/FTP | |
| Connection (1) | M12-plug, straight |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | No |
