1-2322421-5 | TE Connectivity

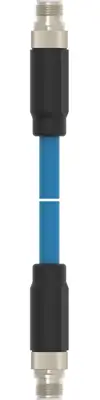

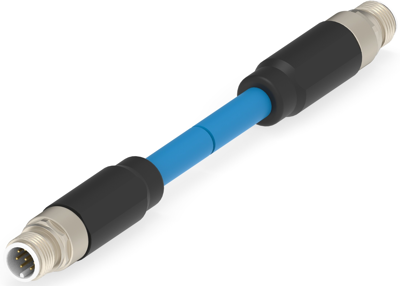

Network cable, M12-plug, straight to M12-plug, straight, Cat 7, S/FTP, 8 m, blue, 1-2322421-5
Order No.: 71P1597
EAN: 4099891646912
MPN:
1-2322421-5
Unit Price (€ / pc.)
186.1993 € *
Available in 5 Days: 2 pcs. - if ordered today
Cable assembly, 1-2322421-5, TE Connectivity
The 1-2322421-5 has a ruggedized design so the cable can withstand severe shocks and vibrations. It delivers the best data speed that allows the cable to be used in confined areas. The unique crimped cable strain relief eliminates conductor breakage and ultimately system failure. At the same time, the crimping system creates a tamper proof installation, eliminating accidental opening of the connector.
Features
- Pre-assembled cable assembly
- Fire and smoke compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (2) | M12-plug, straight | |
| Halogen free | No | |
| Colour | blue | |
| Degree of protection (IP) | IP67 | |
| Version | network cable | |
| Category | Cat 7 | |
| AWG cross-section | AWG 24 | |
| Cable length | 8 m | |
| Connection (1) | M12-plug, straight | |
| Cable type | S/FTP | |
| Detent lever protection available | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
