Y5015-000000100123 | TE Connectivity

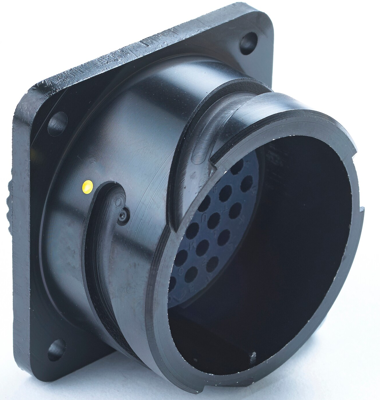

Circular connector, 3 pole, crimp connection, bayonet locking, straight, Y5015-000000100123
Unit Price (€ / pc.)
26.1443 € *
Available in 5 Days: 9 pcs. - if ordered today
Circular connector, Y5015-000000100123, TE Connectivity
The Y5015-000000100123 has a dynamic sealing ring and individual wire seal grommet. When mated and used with appropriate sealed backshell is IP67 rated.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 3 pole | |
| Orientation | straight | |
| Type of locking | bayonet locking | |
| Assembly | panel mounting | |
| Contact connection | crimp connection | |
| Version | socket | |
| Shell Material | aluminum alloy |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
