T4171010405-001 | TE Connectivity

Circular connector, 5 pole, screw locking, straight, T4171010405-001

Order No.: 72P3997
EAN: 4099891710675
MPN:
T4171010405-001
Series: M12

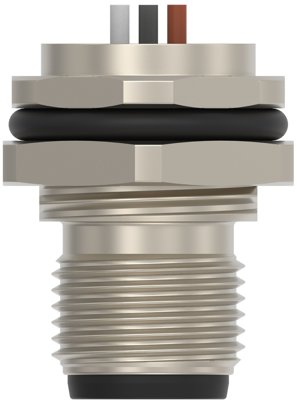

T4171010405-001 TE Connectivity Other Circular Connectors Image 1

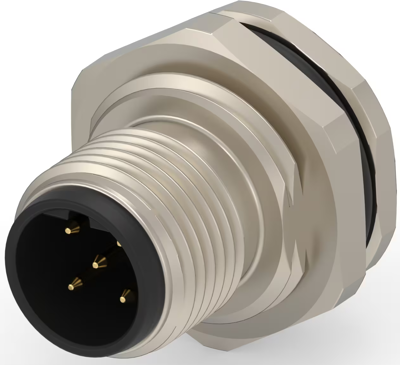

T4171010405-001 TE Connectivity Other Circular Connectors Image 2

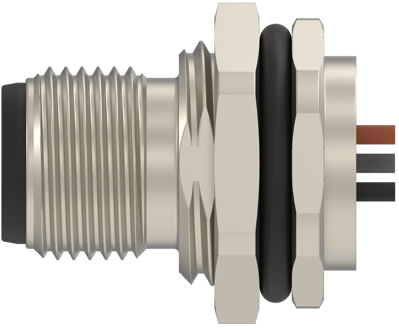

T4171010405-001 TE Connectivity Other Circular Connectors Image 3

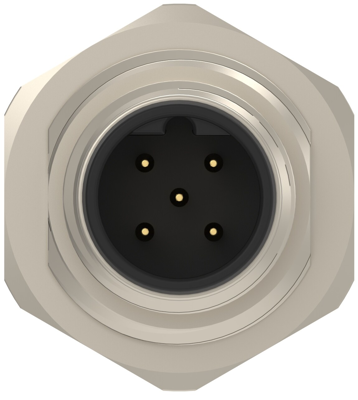

T4171010405-001 TE Connectivity Other Circular Connectors Image 4

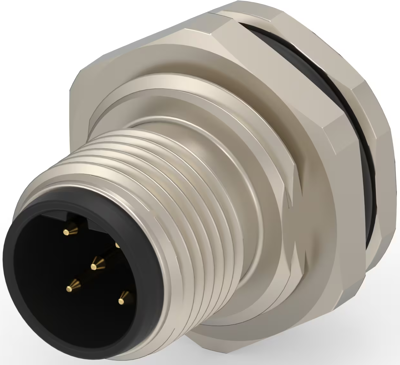

T4171010405-001 TE Connectivity Other Circular Connectors Image 5
Image may differ
Unit Price (€ / pc.)
11.5787 € *
Standard delivery time from the manufacturer is: 24 Weeks
Total Price:
11.58 € *
Price list
Quantity
Price per unit*
1 pcs.
11.5787 €
10 pcs.
10.6505 €
50 pcs.
9.5914 €
100 pcs.
8.6275 €
*incl. VAT plus shipping costs
Subject to prior sale

Circular connector, T4171010405-001, TE Connectivity

Standard circular connector, Wire-to-Panel, 5 Position, Sealable, Wire & Cable, Signal, Reverse gender, Nickel, Brass.

Technical specifications
Type of locking screw locking
contact surface gold-plated
Assembly panel mounting
Cable cross-section 0.34-0.5 mm²
Pin number 5 pole
Version plug
Shell Material PA
Orientation straight
Logistics
Country of origin CN
Customs tariff number 85444290
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
