T4145535021-001 | TE Connectivity

Circular connector, 2 pole, solder connection, angled, T4145535021-001

Order No.: 72P3939
EAN: 4099891710613
MPN:
T4145535021-001
Series: M12

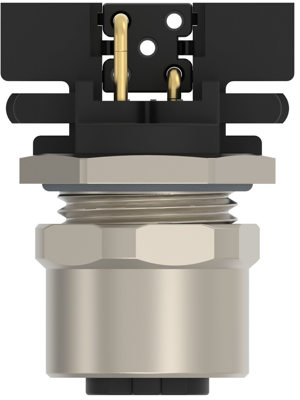

T4145535021-001 TE Connectivity Other Circular Connectors Image 1

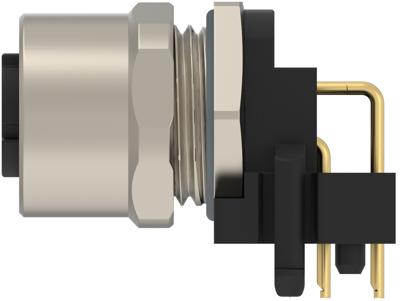

T4145535021-001 TE Connectivity Other Circular Connectors Image 2

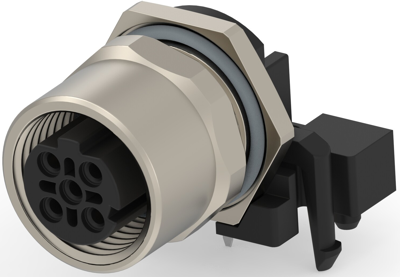

T4145535021-001 TE Connectivity Other Circular Connectors Image 3

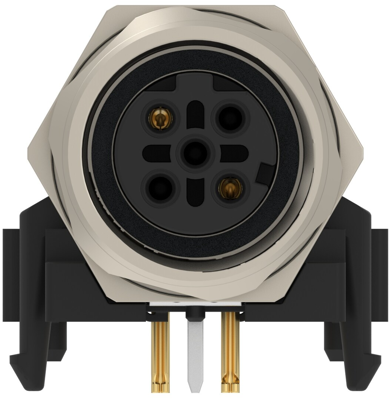

T4145535021-001 TE Connectivity Other Circular Connectors Image 4

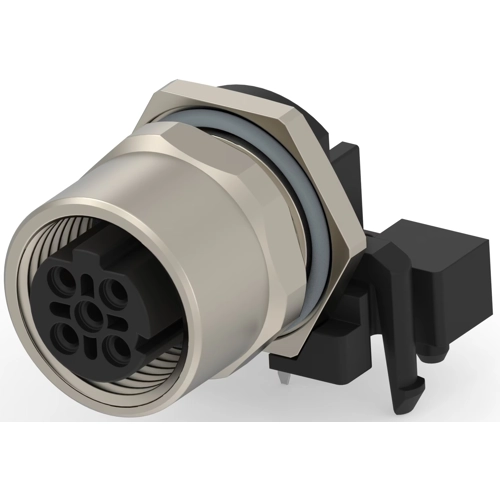

T4145535021-001 TE Connectivity Other Circular Connectors Image 5
Image may differ
Unit Price (€ / pc.)
12.1975 € *
Available in 5 Days: 330 pcs. - if ordered today
Total Price:
12.20 € *
Price list
Quantity
Price per unit*
1 pcs.
12.1975 €
10 pcs.
11.2217 €
50 pcs.
10.1031 €
100 pcs.
9.0916 €
*incl. VAT plus shipping costs
Subject to prior sale

Circular connector, T4145535021-001, TE Connectivity

Standard circular connector, Wire-to-Board, 2 Position, Sealable, Panel mount, Nickel, Brass, D Polarization code, Polyamide GF.

Technical specifications
contact surface gold-plated
Assembly panel mounting
Contact connection solder connection
Pin number 2 pole
Version socket
Shell Material PA
Orientation angled
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
