T4143412041-000 | TE Connectivity
Circular connector, 4 pole, solder connection, screw locking, straight, T4143412041-000
Unit Price (€ / pc.)
5.2598 € *
Available: 0 pcs.
Available in 5 Days: 795 pcs.
Leadtime: 1 Week **
Total Price:
5.26 € *
Price list
Quantity
Price per unit*
20 pcs.
5.2598 €
85 pcs.
4.9504 €
*incl. VAT plus shipping costs
**Subject to prior sale

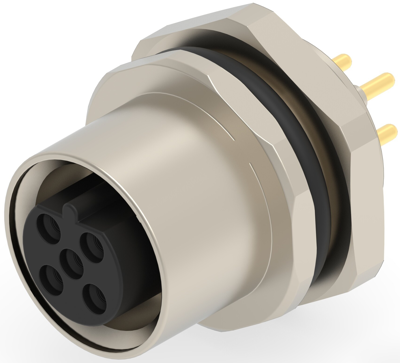

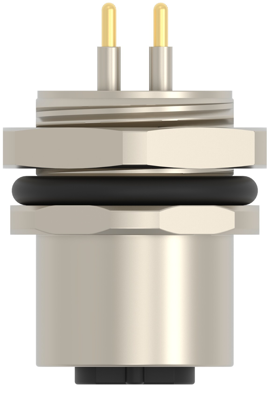

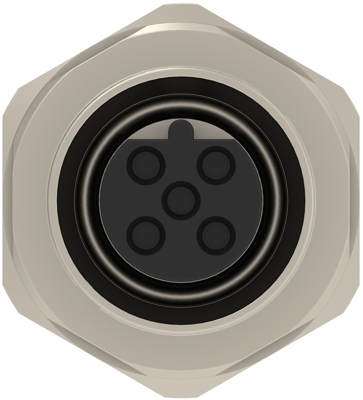

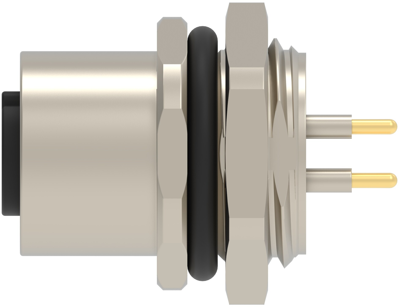

Circular connector, T4143412041-000, TE Connectivity
Standard circular connector, Wire-to-Panel, 4 Position, Sealable, Printed circuit board, Signal, Nickel, Brass, B Polarization code.
Technical specifications
| Version | socket | |
| Shell Material | polyamide | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
