T4142012121-000 | TE Connectivity

Circular connector, 12 pole, solder connection, screw locking, straight, T4142012121-000

Order No.: 72P3904
EAN: 4099891710293
MPN:
T4142012121-000
Series: M12

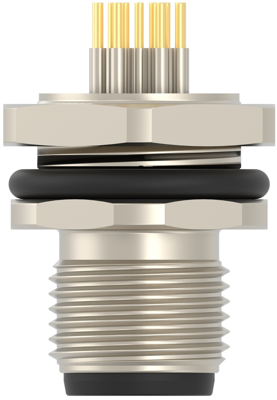

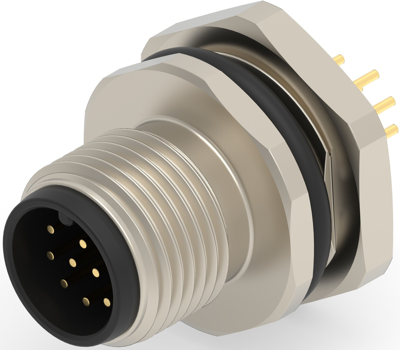

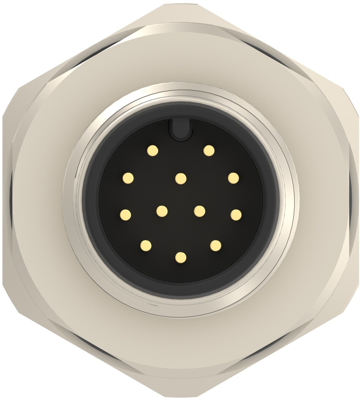

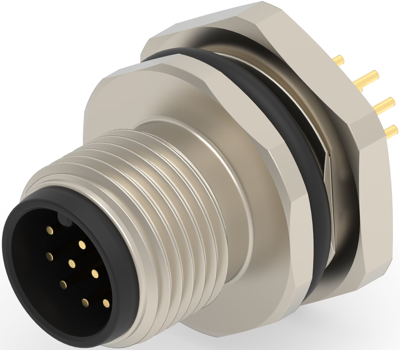

T4142012121-000 TE Connectivity Other Circular Connectors Image 1
T4142012121-000 TE Connectivity Other Circular Connectors Image 2
T4142012121-000 TE Connectivity Other Circular Connectors Image 3
T4142012121-000 TE Connectivity Other Circular Connectors Image 4
T4142012121-000 TE Connectivity Other Circular Connectors Image 5
Image may differ
Unit Price (€ / pc.)
13.7445 € *
Standard delivery time from the manufacturer is: 24 Weeks
Total Price:
2,748.90 € *
*incl. VAT plus shipping costs
Subject to prior sale
200 pcs.
13.7445 €

Circular connector, T4142012121-000, TE Connectivity

Standard circular connector, Wire-to-Panel, 12 Position, Sealable, Signal, Panel mount, Reverse gender, Nickel, Brass.

Technical specifications
Type of locking screw locking
contact surface gold-plated
Assembly panel mounting
Contact connection solder connection
Pin number 12 pole
Version plug
Shell Material PA
Orientation straight
Logistics
Country of origin CN
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
