T4132412051-000 | TE Connectivity

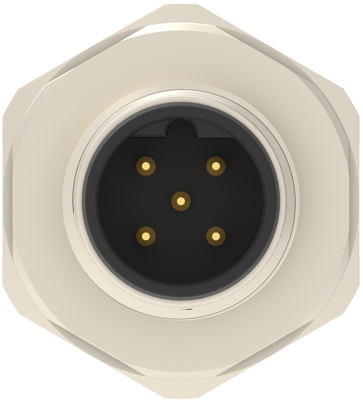

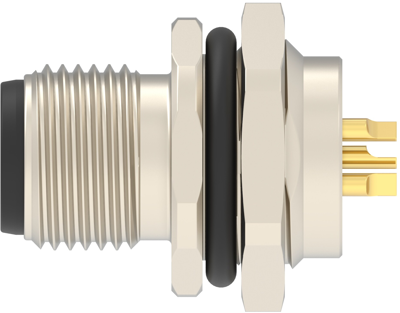

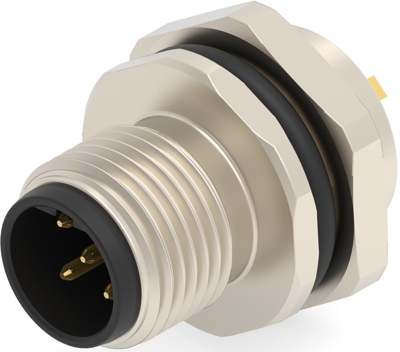

Circular connector, 5 pole, solder cup, screw locking, straight, T4132412051-000
Unit Price (€ / pc.)
5.6763 € *
Available: 0 pcs.
Available in 5 Days: 405 pcs.
Leadtime: 1 Week **
Total Price:
5.68 € *
Price list
Quantity
Price per unit*
15 pcs.
5.6763 €
75 pcs.
5.3431 €
*incl. VAT plus shipping costs
**Subject to prior sale
Circular connector, T4132412051-000, TE Connectivity
Standard circular connector, Wire-to-Panel, 5 Position, Sealable, Wire & Cable, Signal, Nickel, Brass, B Polarization code.
Technical specifications
| Version | plug | |
| Shell Material | polyamide | |
| Contact connection | solder cup | |
| contact surface | gold-plated | |
| Cable cross-section | 0.2-0.82 mm² | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Pin number | 5 pole | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
