T4131012041-000 | TE Connectivity

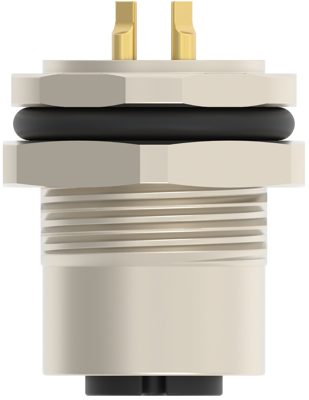

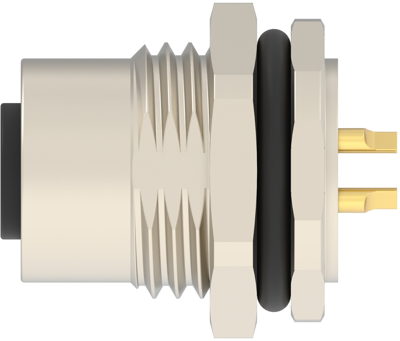

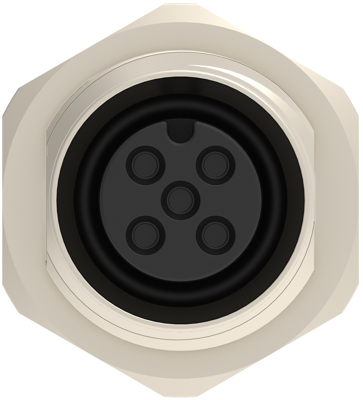

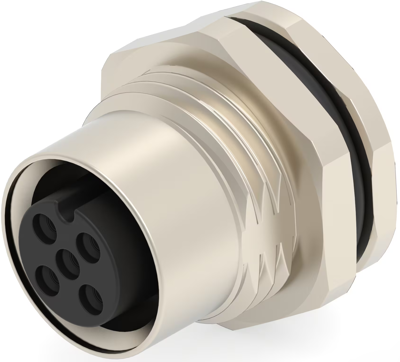

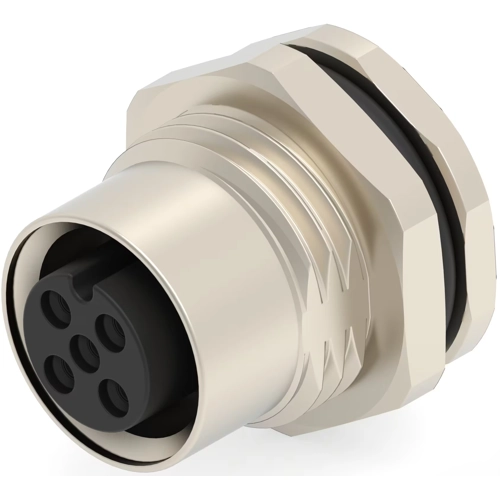

Circular connector, 4 pole, solder cup, screw locking, straight, T4131012041-000
Unit Price (€ / pc.)
9.3177 € *
Standard delivery time from the manufacturer is: 24 Weeks
Total Price:
9.32 € *
Price list
Quantity
Price per unit*
1 pcs.
9.3177 €
10 pcs.
8.6513 €
25 pcs.
8.0682 €
50 pcs.
7.3423 €
*incl. VAT plus shipping costs
Subject to prior sale
Circular connector, T4131012041-000, TE Connectivity
Standard circular connector, Wire-to-Panel, 4 Position, Sealable, Wire & Cable, Signal, Nickel, Brass, A Polarization code.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of locking | screw locking | |
| contact surface | gold-plated | |
| Assembly | panel mounting | |
| Contact connection | solder cup | |
| Cable cross-section | 0.2-0.82 mm² | |
| Pin number | 4 pole | |
| Version | socket | |
| Shell Material | PA | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
