T4113411041-000 | TE Connectivity
Circular connector, 4 pole, screw connection, screw locking, angled, T4113411041-000
Unit Price (€ / pc.)
18.2784 € *
Available in 5 Days: 94 pcs. - if ordered today
Total Price:
18.28 € *
Price list
Quantity
Price per unit*
1 pcs.
18.2784 €
5 pcs.
17.3383 €
10 pcs.
16.2197 €
25 pcs.
14.7917 €
*incl. VAT plus shipping costs
Subject to prior sale

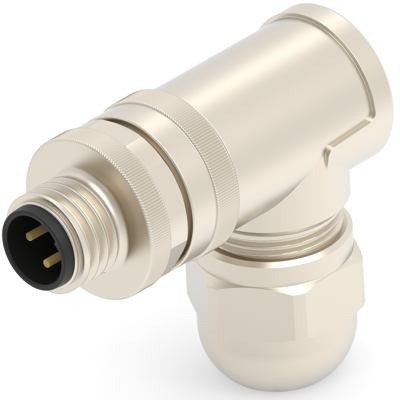

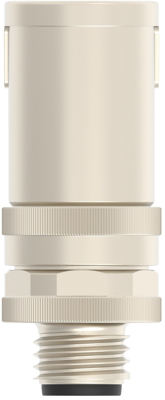

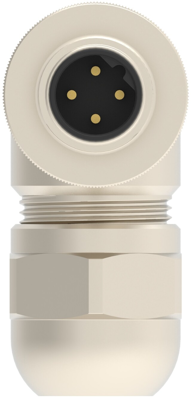

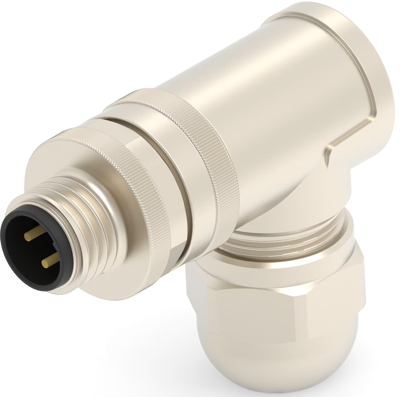

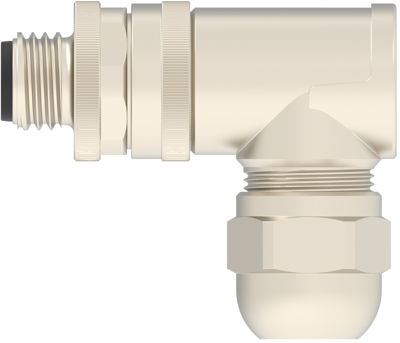

Circular connector, T4113411041-000, TE Connectivity
Standard circular connector, Wire-to-Wire, 4 Position, Sealable, Wire & Cable, Signal, Nickel, Brass, B Polarization code.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 4 pole | |
| Orientation | angled | |
| Type of locking | screw locking | |
| Assembly | cable assembly | |
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Version | plug | |
| Cable cross-section | 0.2-0.82 mm² | |
| Shell Material | PA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
