T4113401031-000 | TE Connectivity

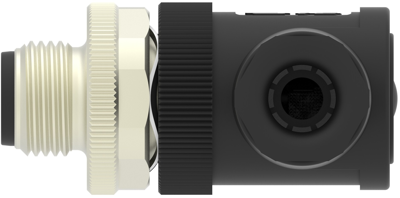

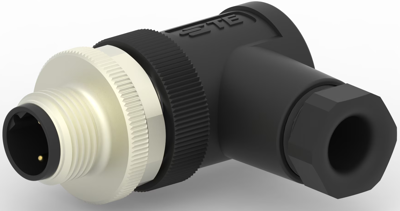

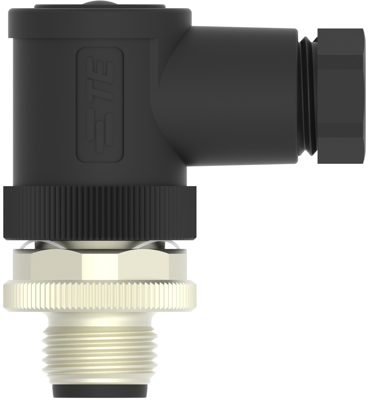

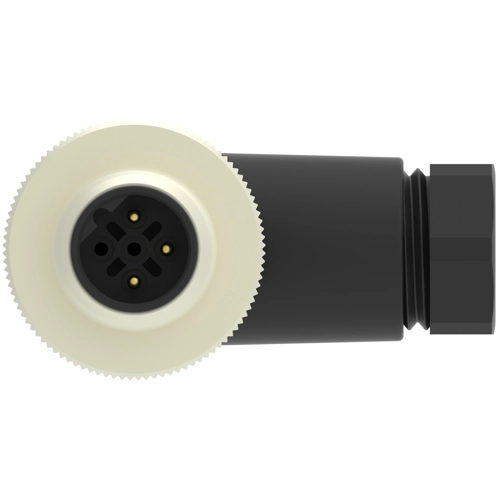

Circular connector, 3 pole, screw connection, screw locking, angled, T4113401031-000
Unit Price (€ / pc.)
6.2951 € *
Available: 0 pcs.
Available in 5 Days: 150 pcs.
Leadtime: 1 Week **
Total Price:
6.30 € *
Price list
Quantity
Price per unit*
15 pcs.
6.2951 €
80 pcs.
5.2598 €
*incl. VAT plus shipping costs
**Subject to prior sale
Circular connector, T4113401031-000, TE Connectivity
Standard circular connector, Wire-to-Wire, 3 Position, Sealable, Wire & Cable, Signal, PBT, B Polarization code, Polyamide 66 GF25.
Technical specifications
| Version | plug | |
| Shell Material | polyamide | |
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Cable cross-section | 0.2-0.82 mm² | |
| Assembly | cable assembly | |
| Orientation | angled | |
| Pin number | 3 pole | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
